Data Monitor

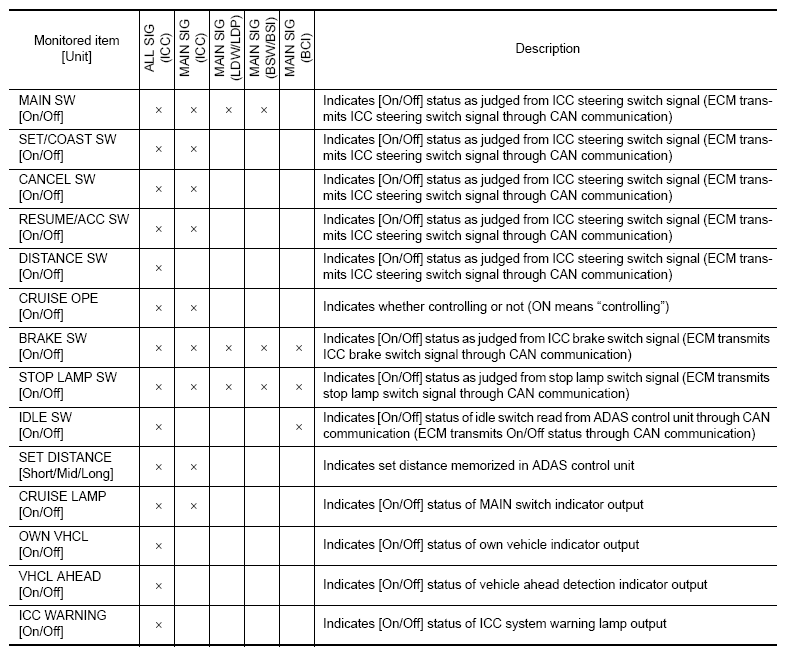

Fig 1: Data Monitor Chart (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

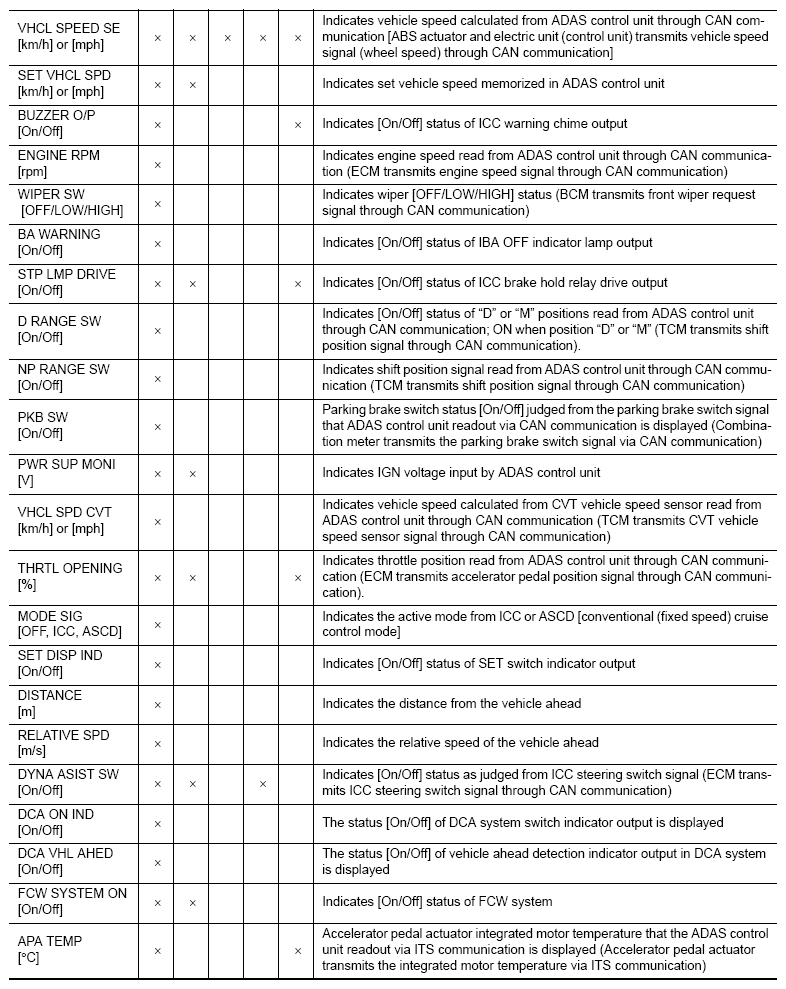

Fig 2: Data Monitor Chart (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

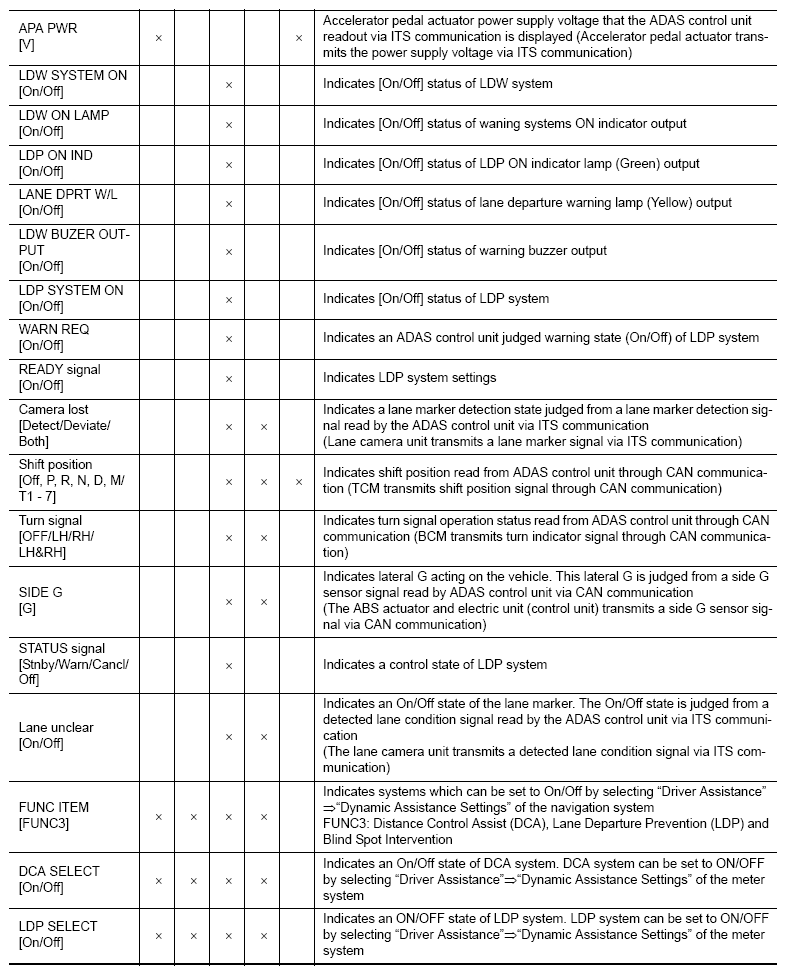

Fig 3: Data Monitor Chart (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

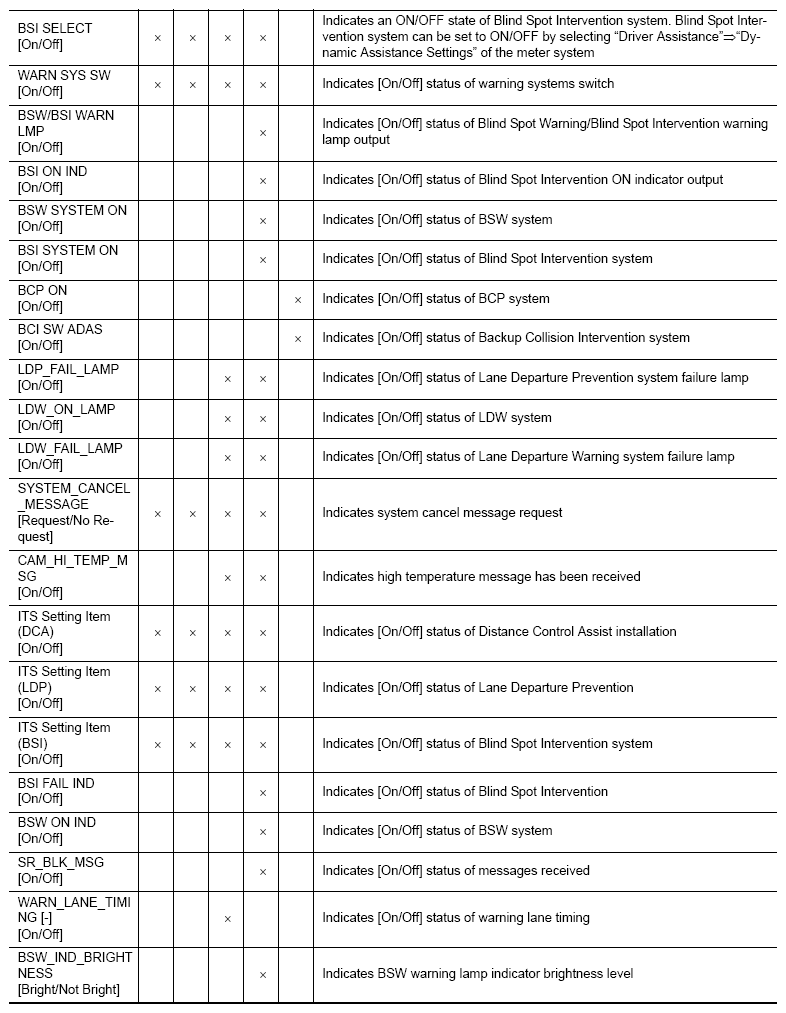

Fig 4: Data Monitor Chart (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

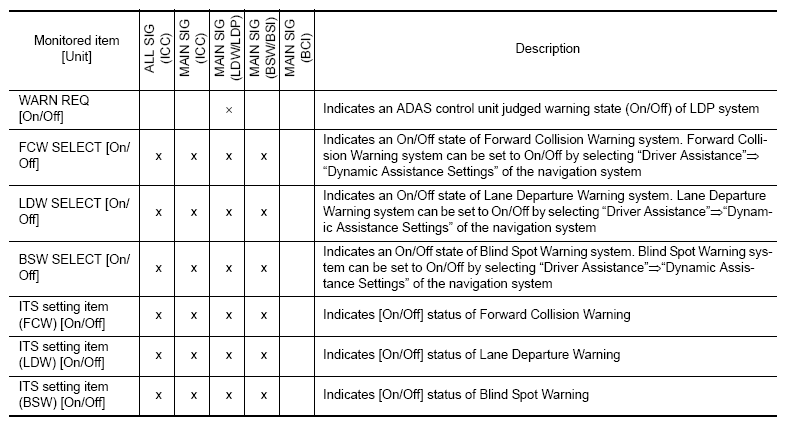

Fig 5: Data Monitor Chart (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
