Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Driver Assistance System (BCI)
>>
System Description
>>
Diagnosis System (ADAS Control Unit)
>>
CONSULT Function (ICC/ADAS)
>>
Data Monitor
Data Monitor

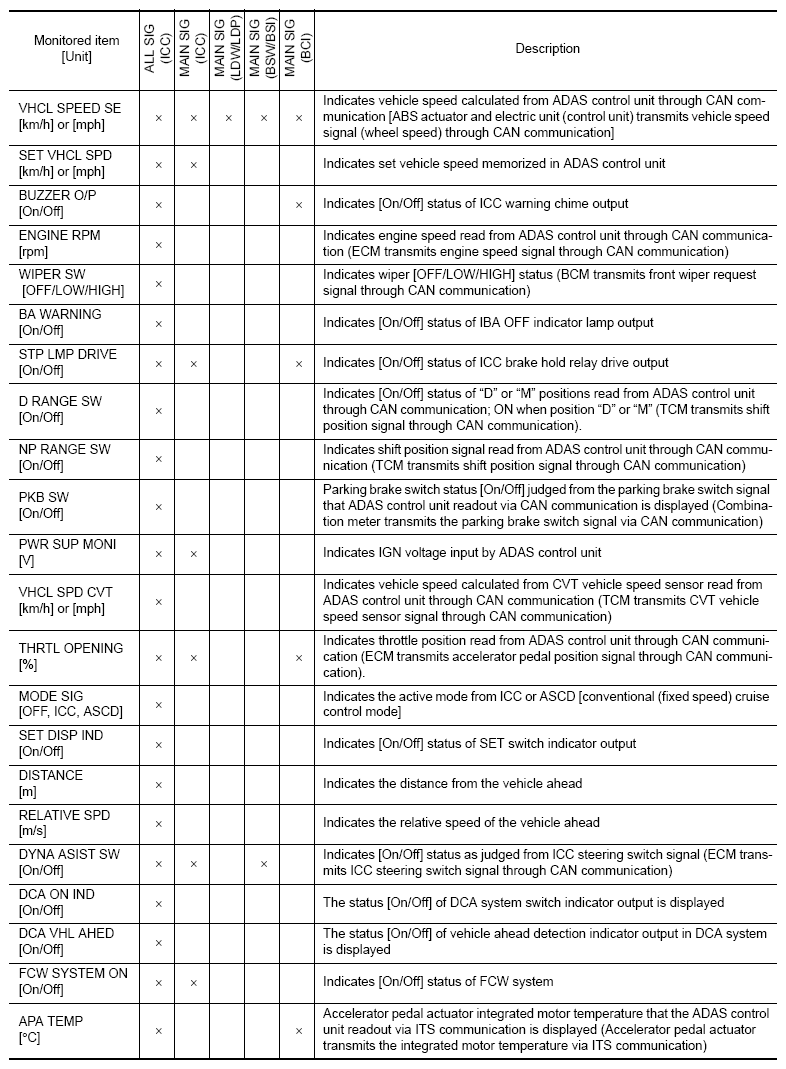

Fig 1: Data Monitor Items List (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

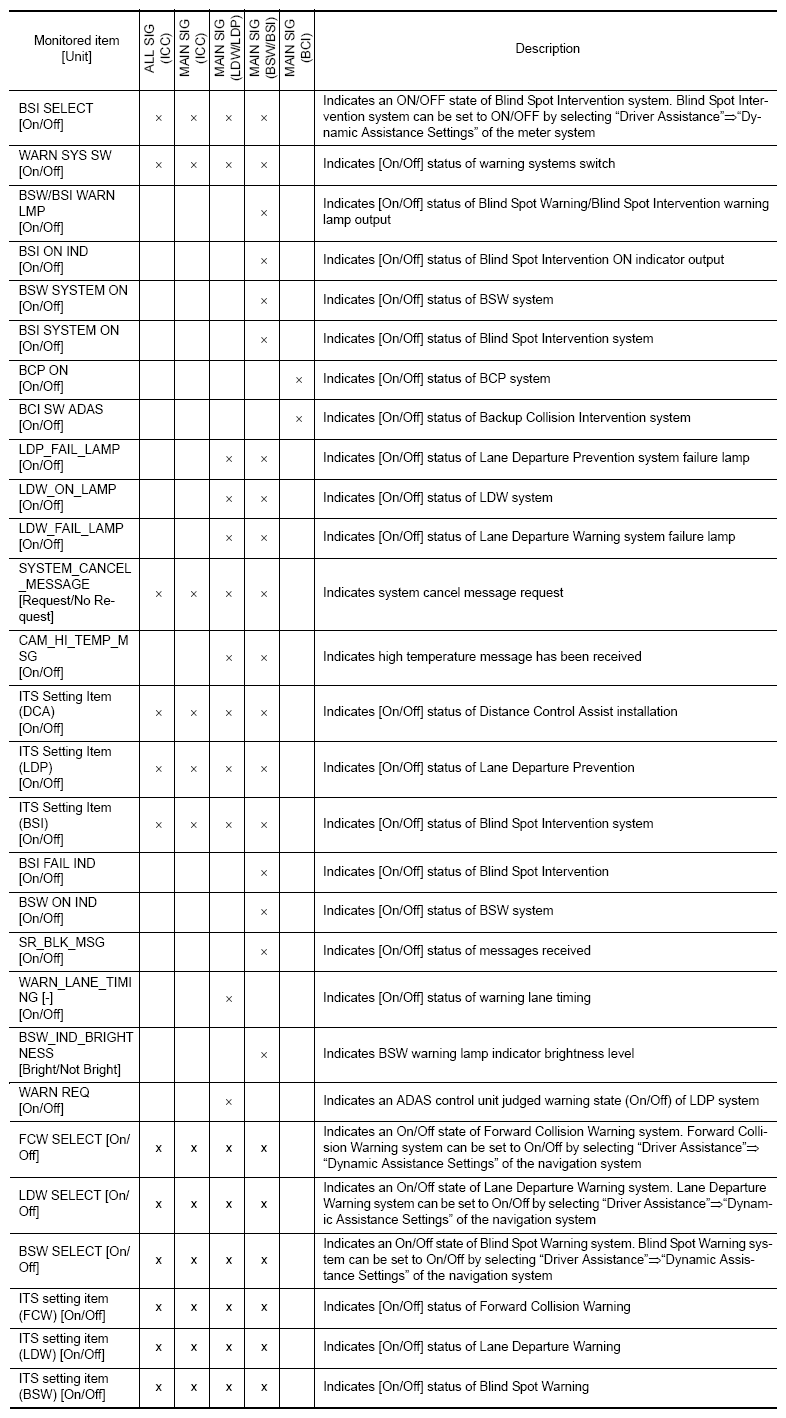

Fig 2: Data Monitor Items List (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

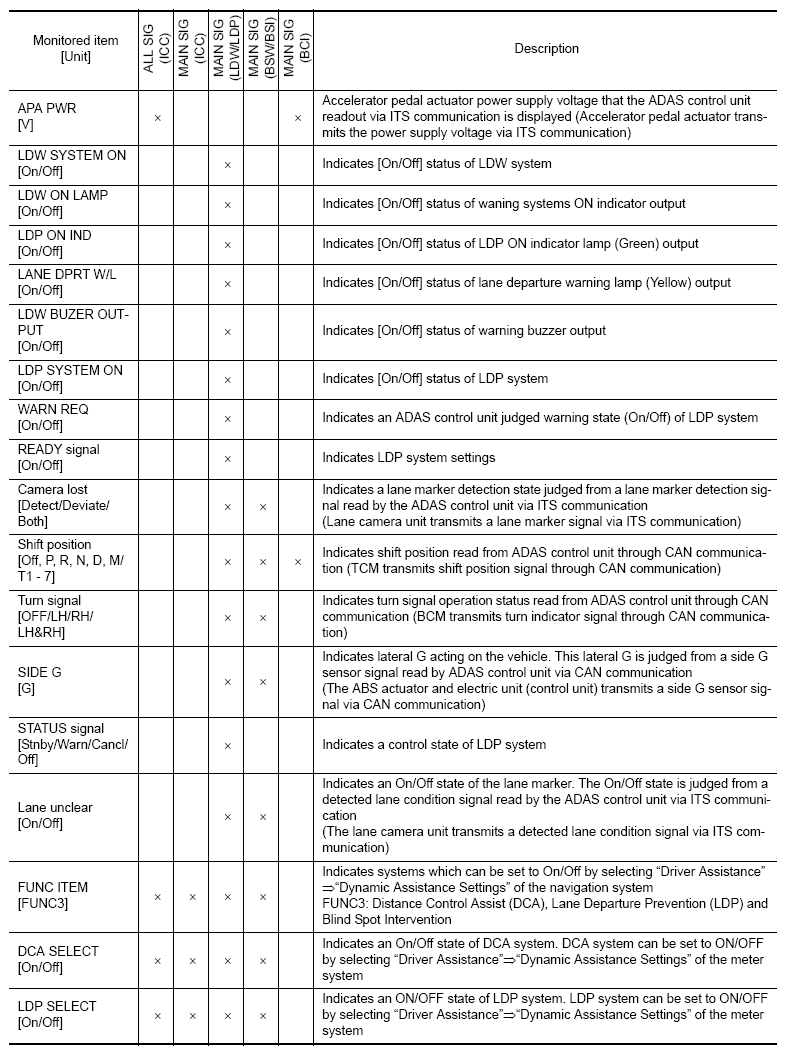

Fig 3: Data Monitor Items List (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

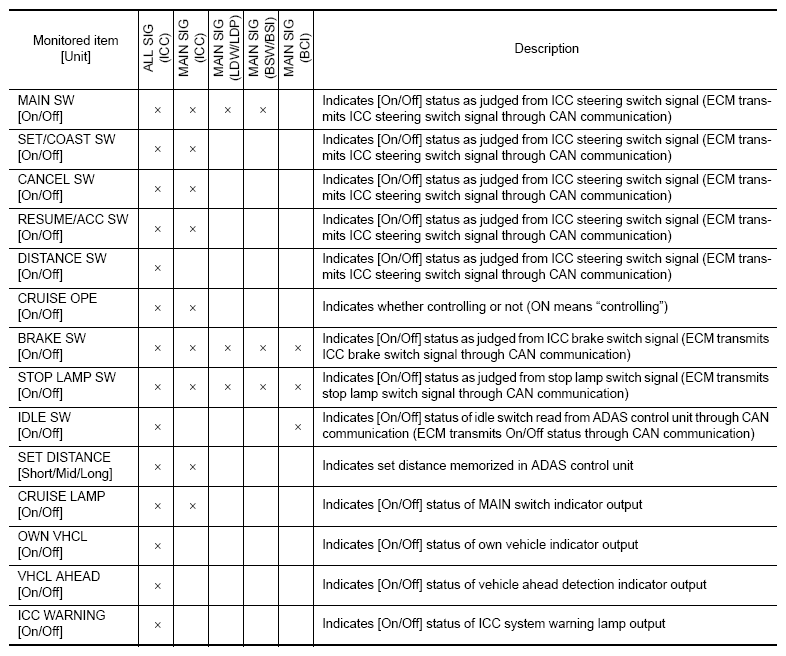

Fig 4: Data Monitor Items List (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
