Intelligent Cruise Control System (ICC)
>>
Removal And Installation
>>
ICC Sensor
>>
Exploded View
Exploded View

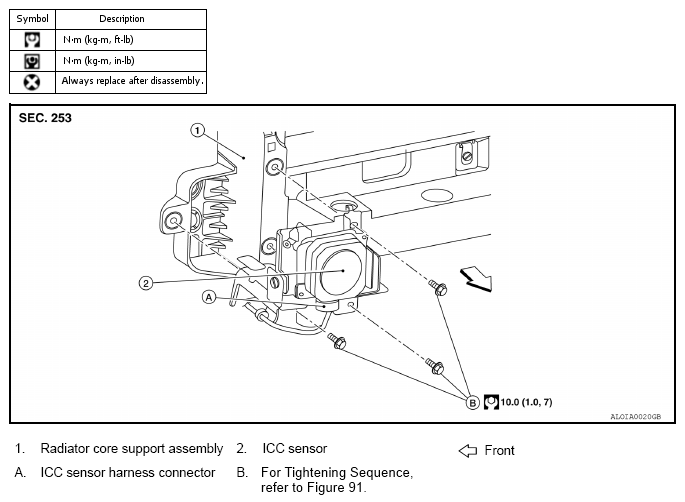

Fig 1: Exploded View Of ICC Sensor With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
