System - Engine Mechanical & Other

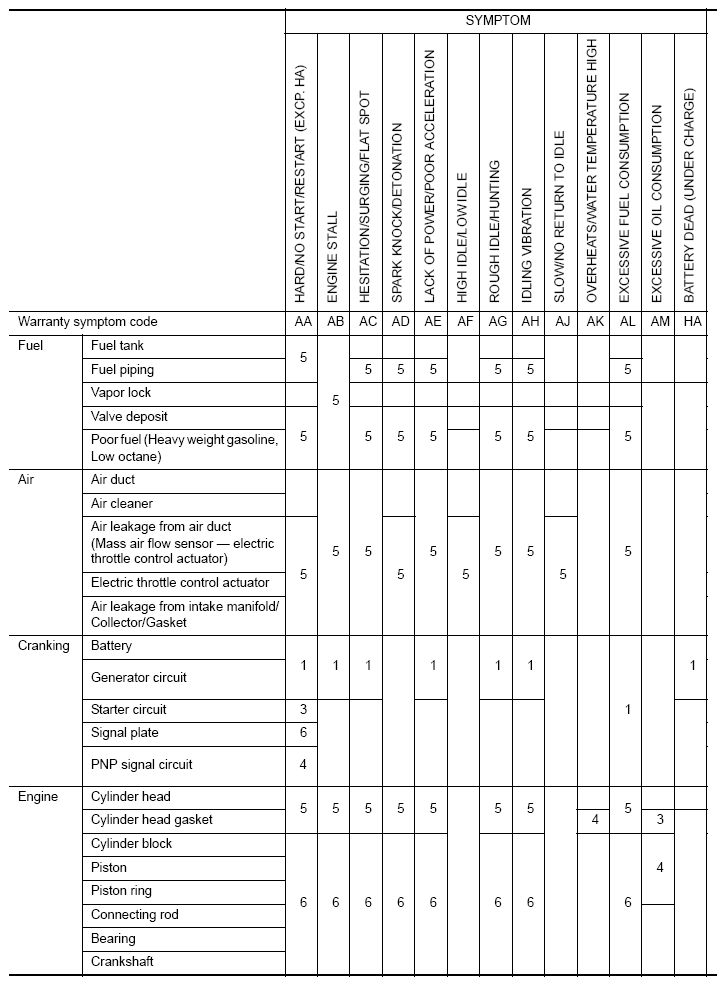

Fig 1: Engine Mechanical & Other Control System Symptoms Chart (1 Of 2)
G08761745Courtesy of NISSAN NORTH AMERICA, INC.

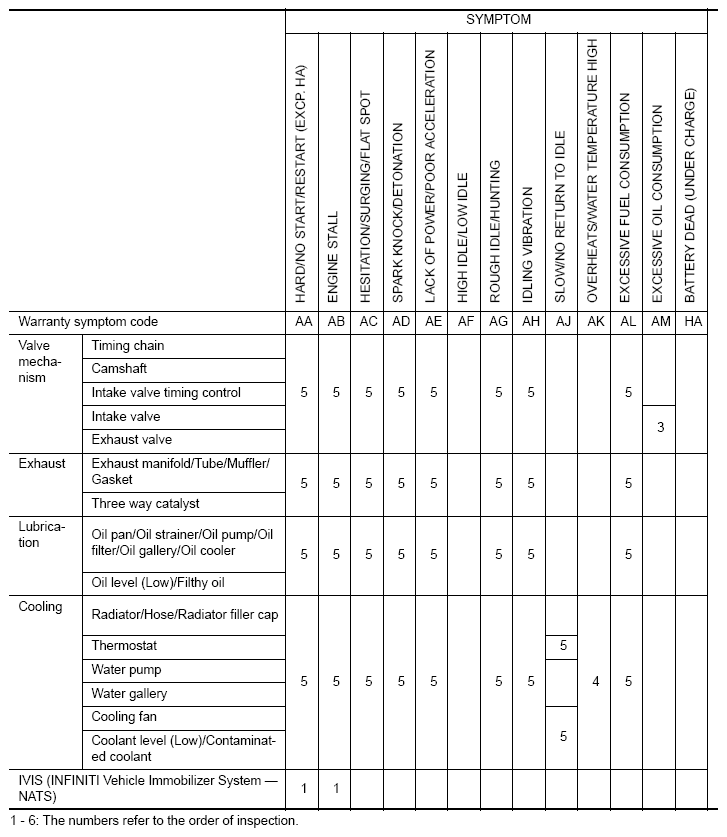

Fig 2: Engine Mechanical & Other Control System Symptoms Chart (2 Of 2)
G08761746Courtesy of NISSAN NORTH AMERICA, INC.

1 - 6: The numbers refer to the order of inspection.
