Symptom Diagnosis
>>
System Symptom
>>
Symptom Table 1
>>
Symptom Table 2
Symptom Table 2

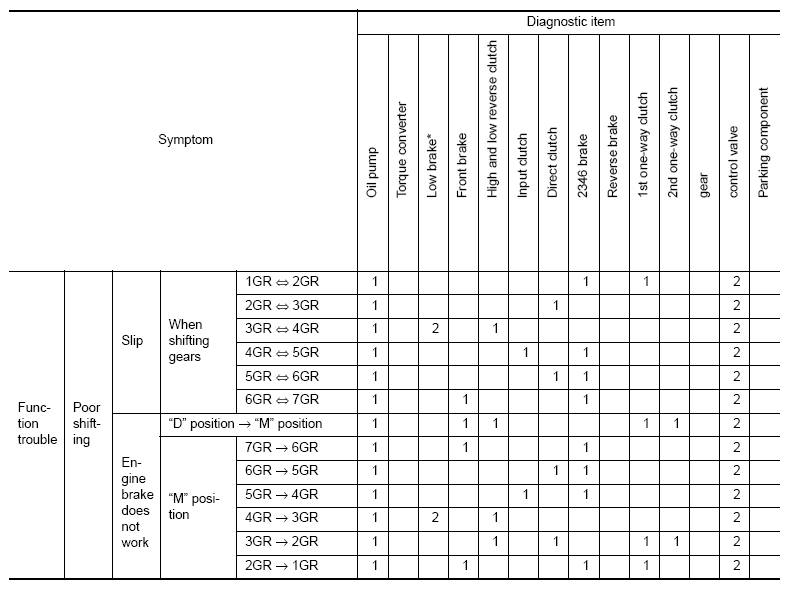

Fig 1: TCM Symptom Diagnosis Chart (6 Of 10)
Courtesy of NISSAN NORTH AMERICA, INC.

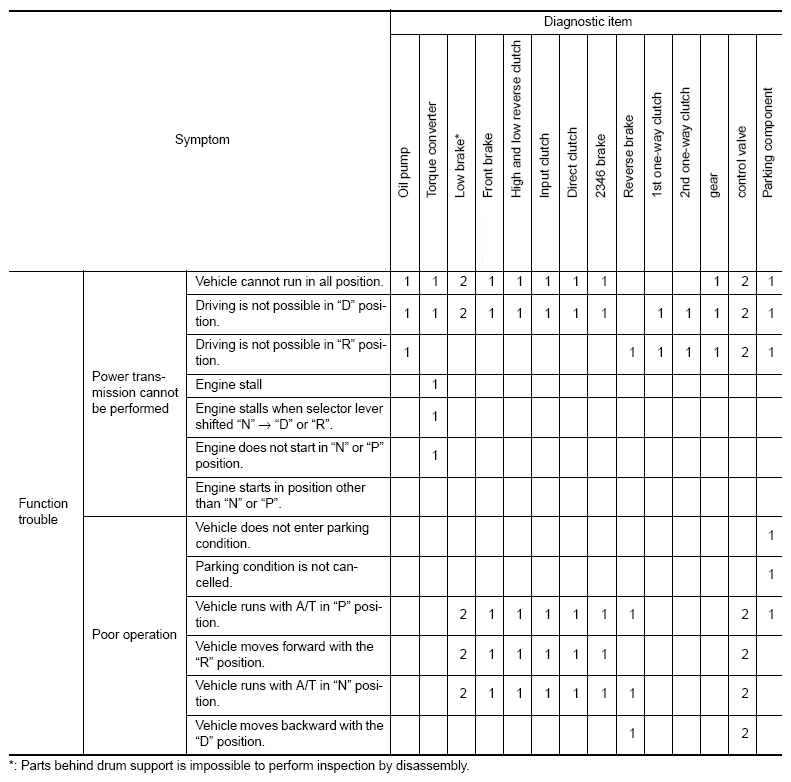

Fig 2: TCM Symptom Diagnosis Chart (7 Of 10)
Courtesy of NISSAN NORTH AMERICA, INC.

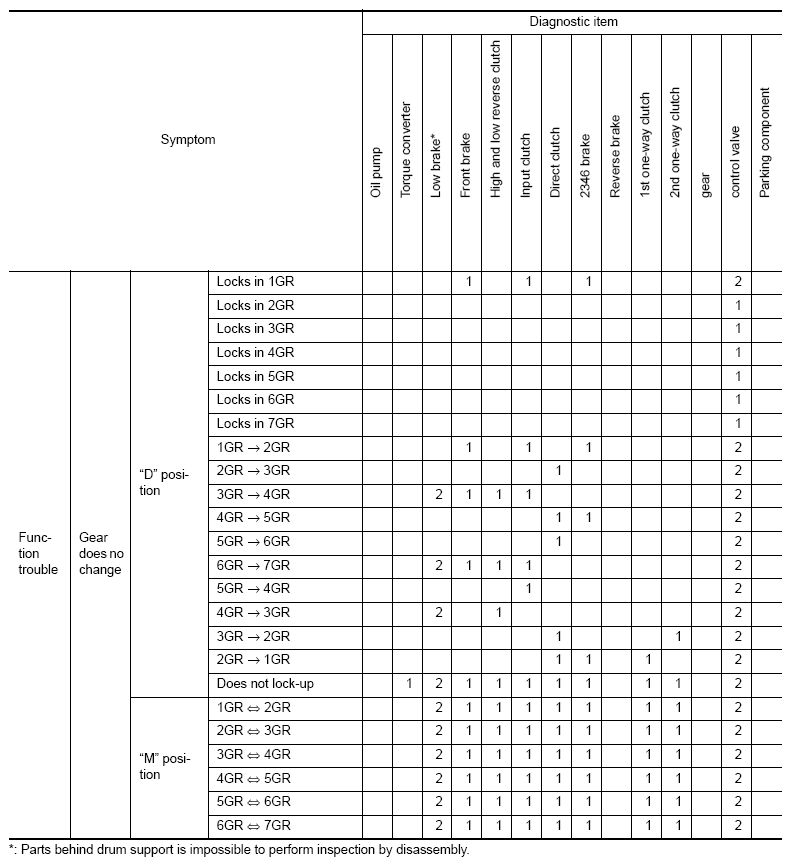

Fig 3: TCM Symptom Diagnosis Chart (8 Of 10)
Courtesy of NISSAN NORTH AMERICA, INC.

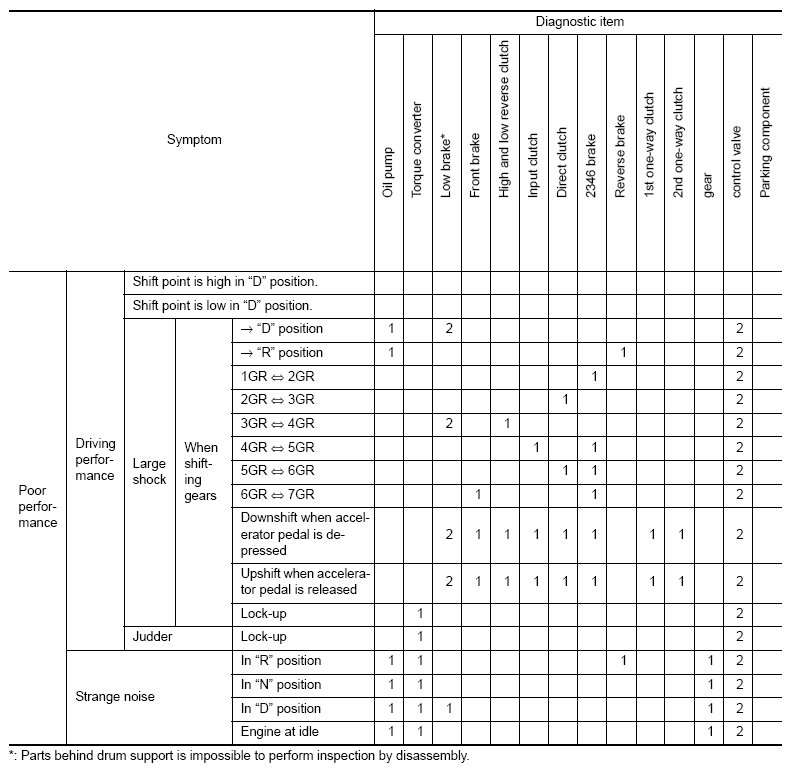

Fig 4: TCM Symptom Diagnosis Chart (9 Of 10)
Courtesy of NISSAN NORTH AMERICA, INC.

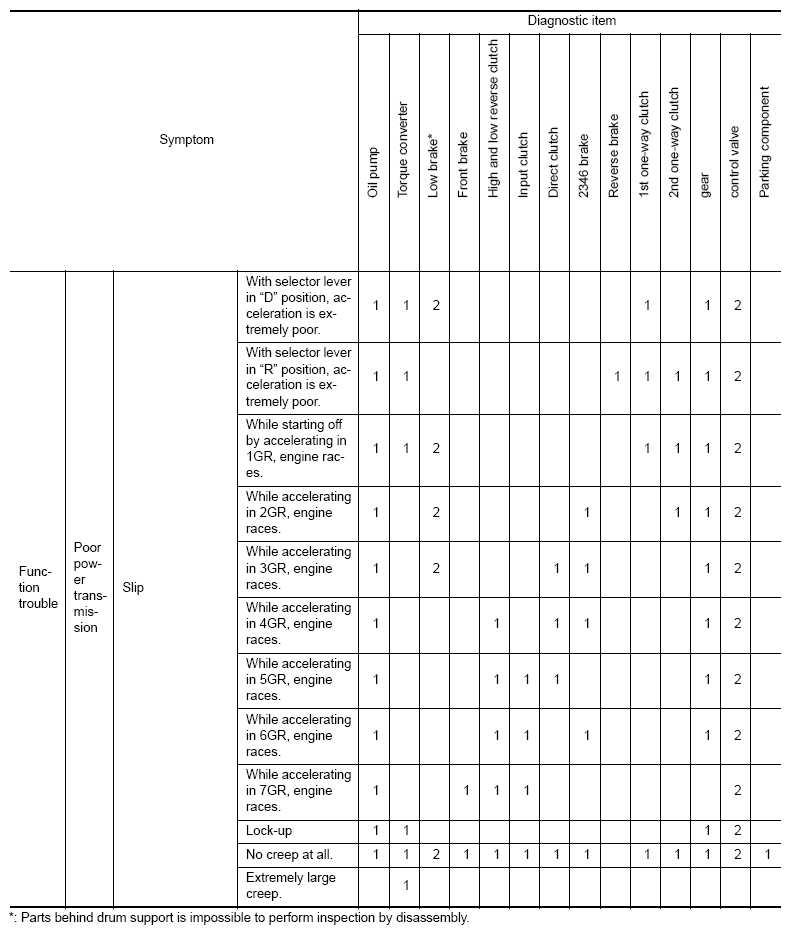

Fig 5: TCM Symptom Diagnosis Chart (10 Of 10)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
