Wiring Diagram - CONSULT/GST CHECKING SYSTEM

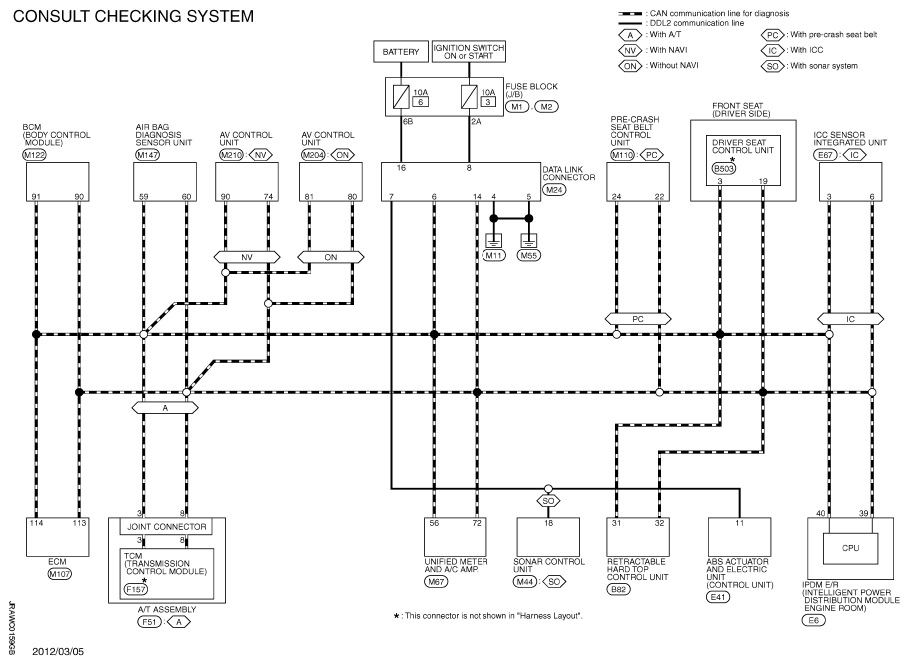

Fig 1: CONSULT Checking System Wiring Diagram

G08739195

Courtesy of NISSAN NORTH AMERICA, INC.
