Exploded View

WARNING: This page is about a different variant/trim than selected.

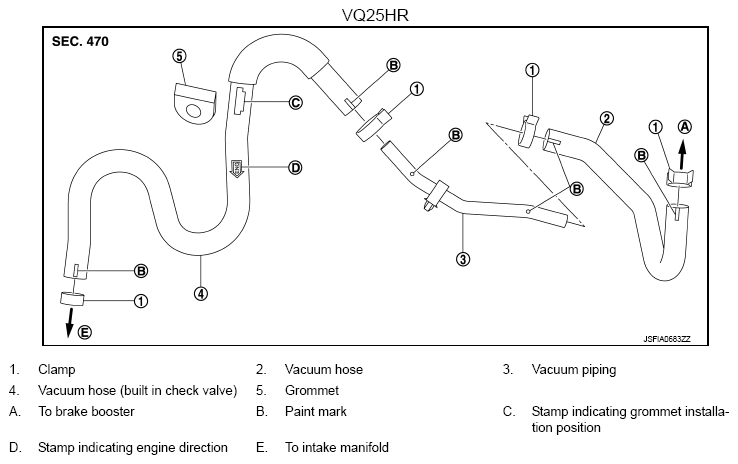

Fig 1: Exploded View Of Vacuum Lines (VQ25HR)
G09011086Courtesy of NISSAN NORTH AMERICA, INC.

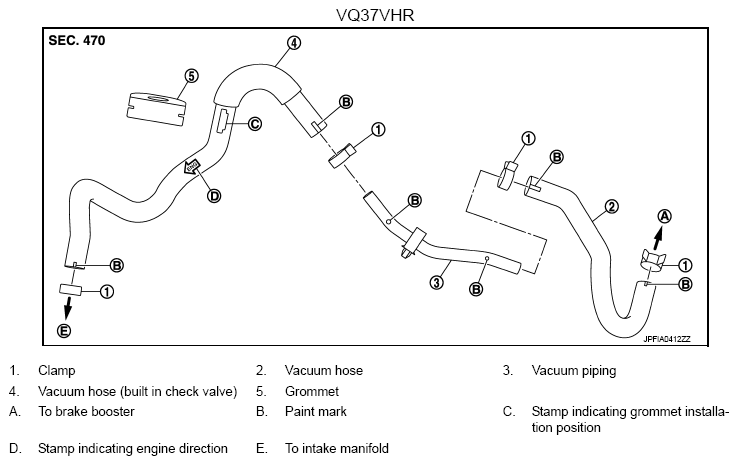

Fig 2: Exploded View Of Vacuum Lines (VQ37VHR)
G09011087Courtesy of NISSAN NORTH AMERICA, INC.
