AWD: Exploded View

WARNING: This page is about a different variant/trim than selected.

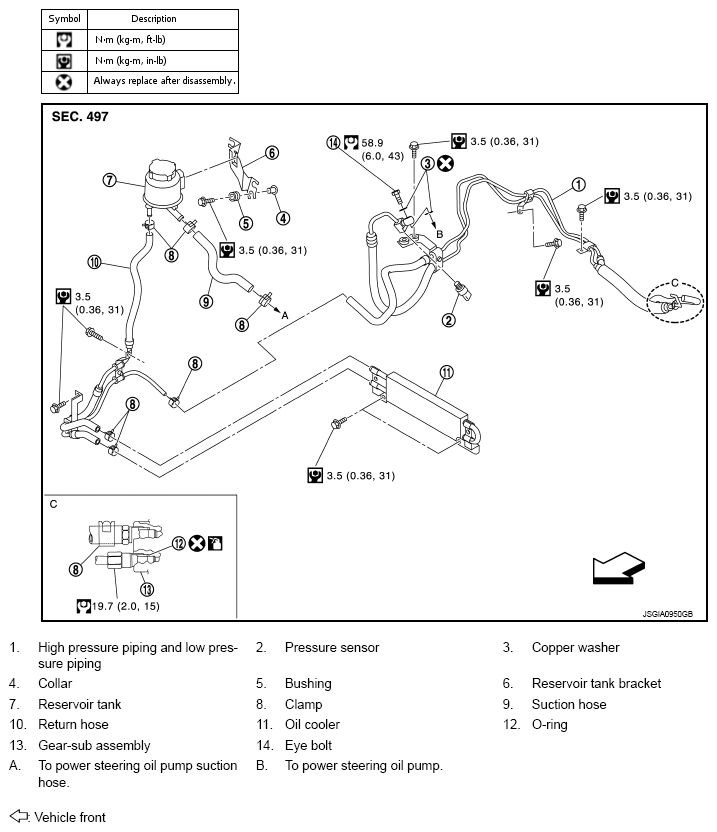

Fig 1: Exploded View Of Hydraulic Line AWD With Torque Specifications
G09011302Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
