Component Parts Location

WARNING: This page is about a different variant/trim than selected.

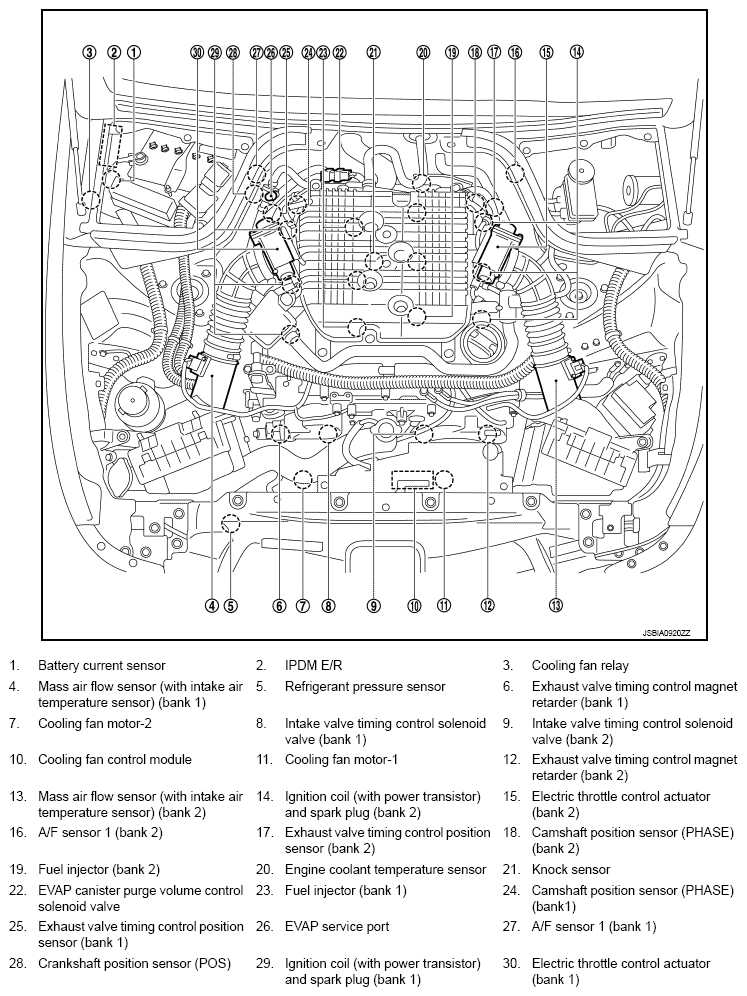

Fig 1: Exhaust Valve Timing Control Components Parts Location (1 Of 19)
G09009927Courtesy of NISSAN NORTH AMERICA, INC.

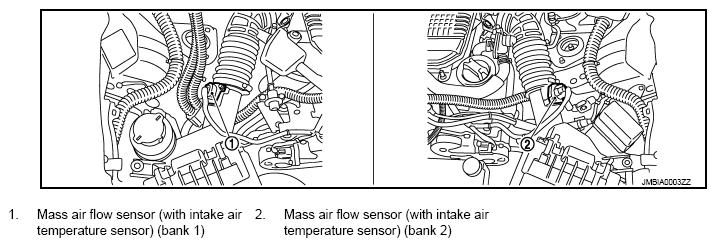

Fig 2: Exhaust Valve Timing Control Components Parts Location (2 Of 19)
G09009928Courtesy of NISSAN NORTH AMERICA, INC.

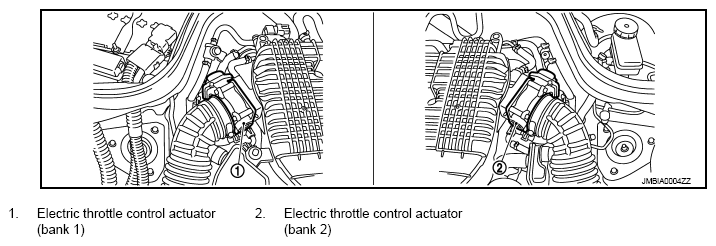

Fig 3: Exhaust Valve Timing Control Components Parts Location (3 Of 19)
G09009929Courtesy of NISSAN NORTH AMERICA, INC.

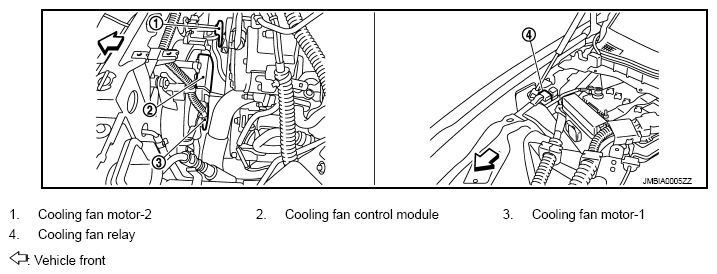

Fig 4: Exhaust Valve Timing Control Components Parts Location (4 Of 19)
G09009930Courtesy of NISSAN NORTH AMERICA, INC.

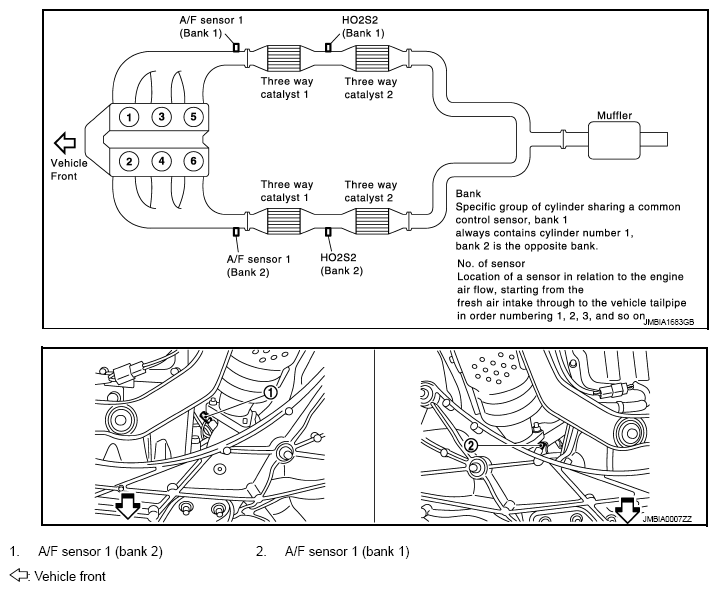

Fig 5: Exhaust Valve Timing Control Components Parts Location (5 Of 19)
G09009931Courtesy of NISSAN NORTH AMERICA, INC.

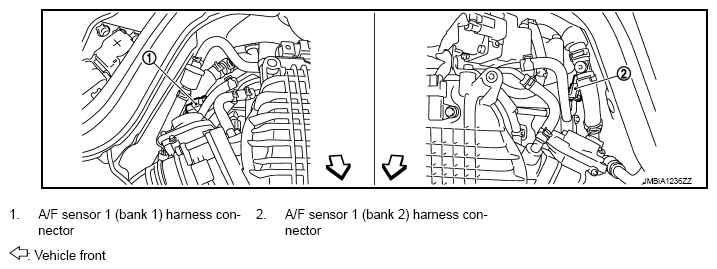

Fig 6: Exhaust Valve Timing Control Components Parts Location (6 Of 19)
G09009932Courtesy of NISSAN NORTH AMERICA, INC.

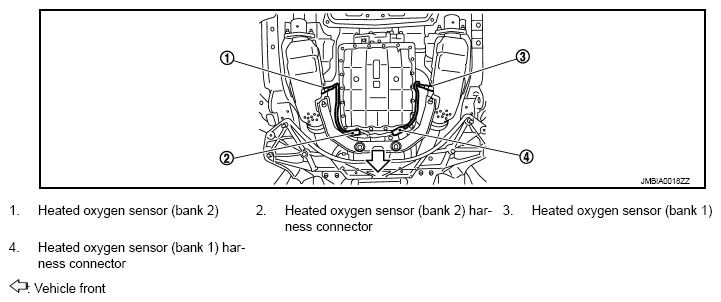

Fig 7: Exhaust Valve Timing Control Components Parts Location (7 Of 19)
G09009933Courtesy of NISSAN NORTH AMERICA, INC.

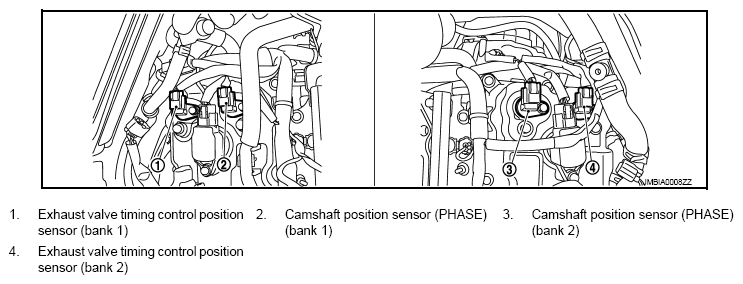

Fig 8: Exhaust Valve Timing Control Components Parts Location (8 Of 19)
G09009934Courtesy of NISSAN NORTH AMERICA, INC.

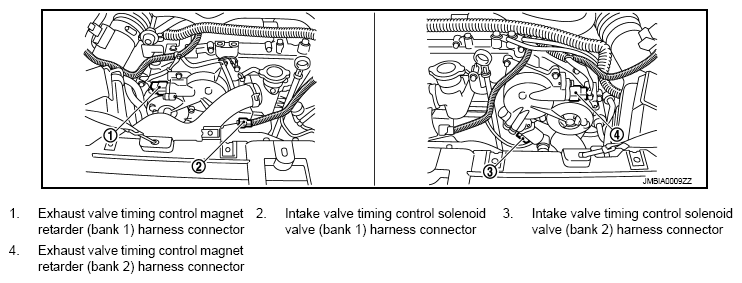

Fig 9: Exhaust Valve Timing Control Components Parts Location (9 Of 19)
G09009935Courtesy of NISSAN NORTH AMERICA, INC.

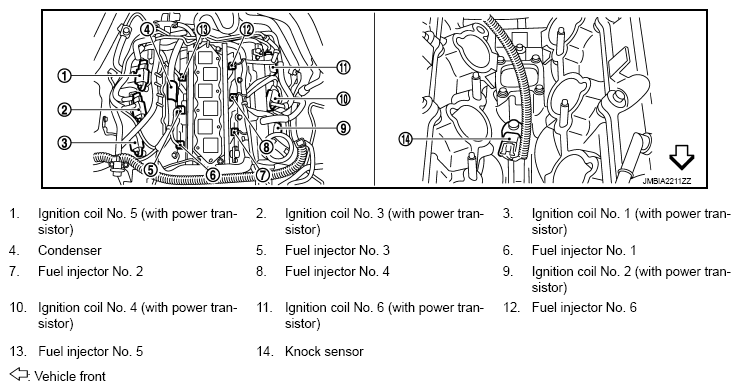

Fig 10: Exhaust Valve Timing Control Components Parts Location (10 Of 19)
G09009936Courtesy of NISSAN NORTH AMERICA, INC.

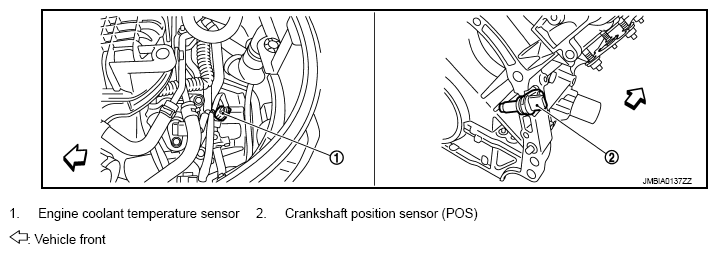

Fig 11: Exhaust Valve Timing Control Components Parts Location (11 Of 19)
G09009937Courtesy of NISSAN NORTH AMERICA, INC.

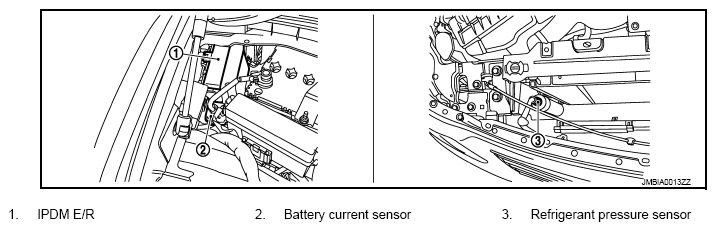

Fig 12: Exhaust Valve Timing Control Components Parts Location (12 Of 19)
G09009938Courtesy of NISSAN NORTH AMERICA, INC.

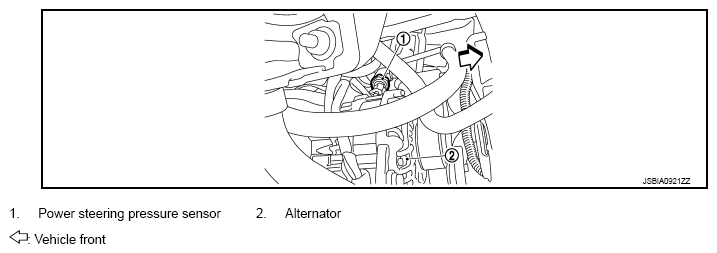

Fig 13: Exhaust Valve Timing Control Components Parts Location (13 Of 19)
G09009939Courtesy of NISSAN NORTH AMERICA, INC.

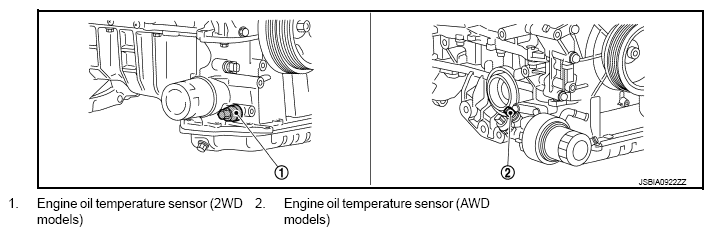

Fig 14: Exhaust Valve Timing Control Components Parts Location (14 Of 19)
G09009940Courtesy of NISSAN NORTH AMERICA, INC.

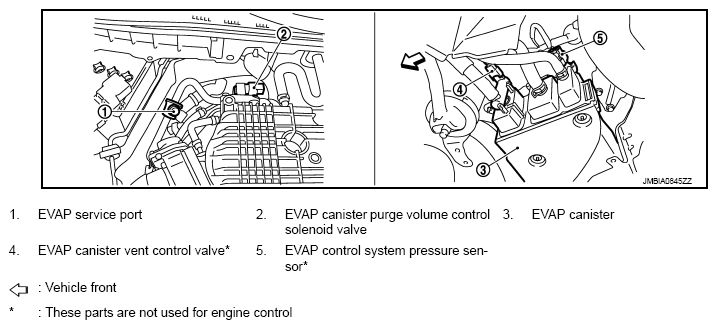

Fig 15: Exhaust Valve Timing Control Components Parts Location (15 Of 19)
G09009941Courtesy of NISSAN NORTH AMERICA, INC.

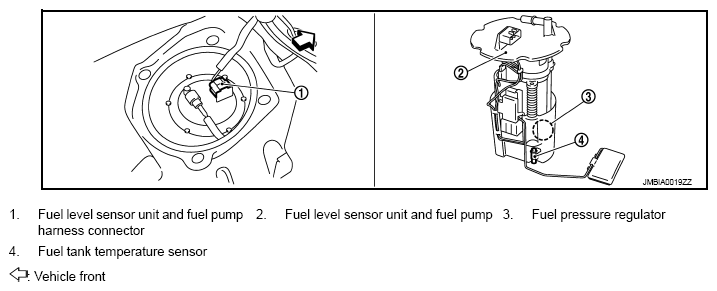

Fig 16: Exhaust Valve Timing Control Components Parts Location (16 Of 19)
G09009942Courtesy of NISSAN NORTH AMERICA, INC.

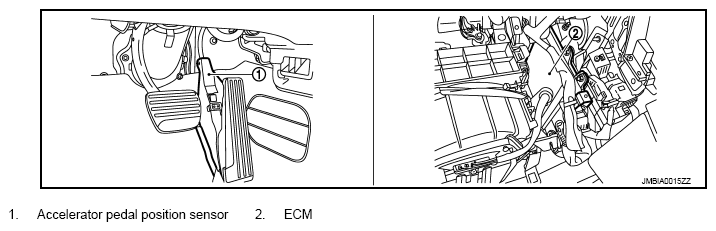

Fig 17: Exhaust Valve Timing Control Components Parts Location (17 Of 19)
G09009943Courtesy of NISSAN NORTH AMERICA, INC.

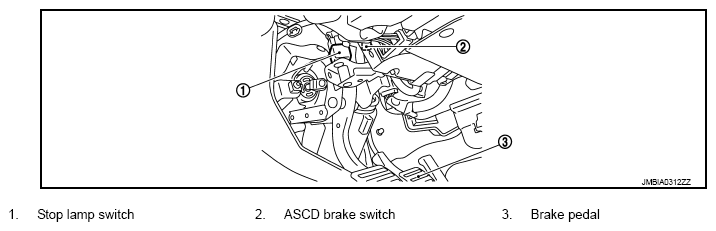

Fig 18: Exhaust Valve Timing Control Components Parts Location (18 Of 19)
G09009944Courtesy of NISSAN NORTH AMERICA, INC.

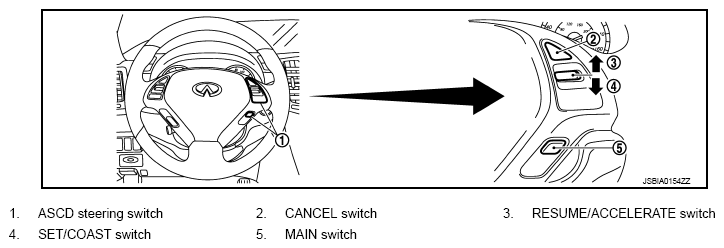

Fig 19: Exhaust Valve Timing Control Components Parts Location (19 Of 19)
G09009945Courtesy of NISSAN NORTH AMERICA, INC.
