Exploded View
Exploded View

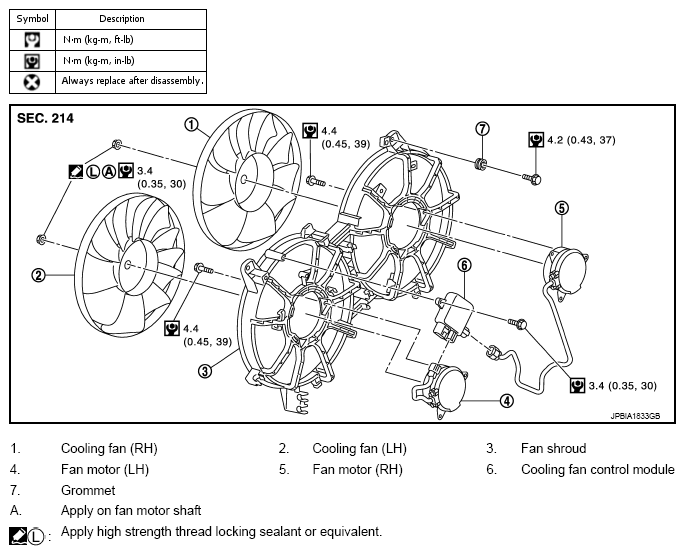

Fig 1: Exploded View Of Cooling Fan With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYMBOLS
" for symbols not described on the above.
