VK50VE: Exploded View: Removal

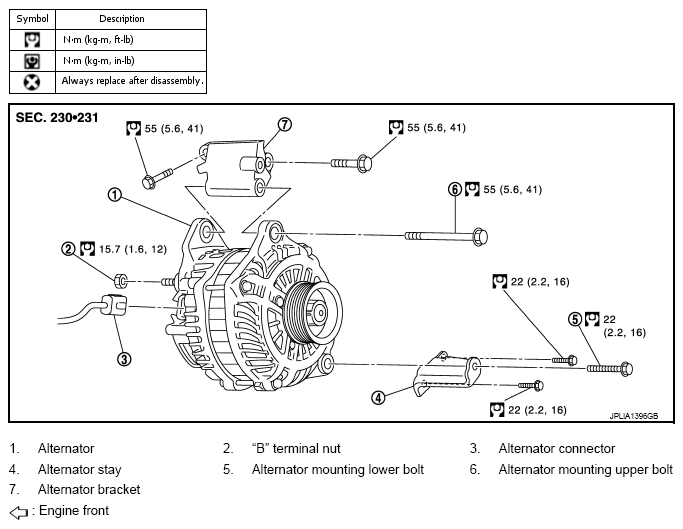

Fig 1: Exploded View Of Alternator (VK50VE) With Torque Specifications
G09004687Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols in the figure.
