VK50VE: Exploded View: Disassembly

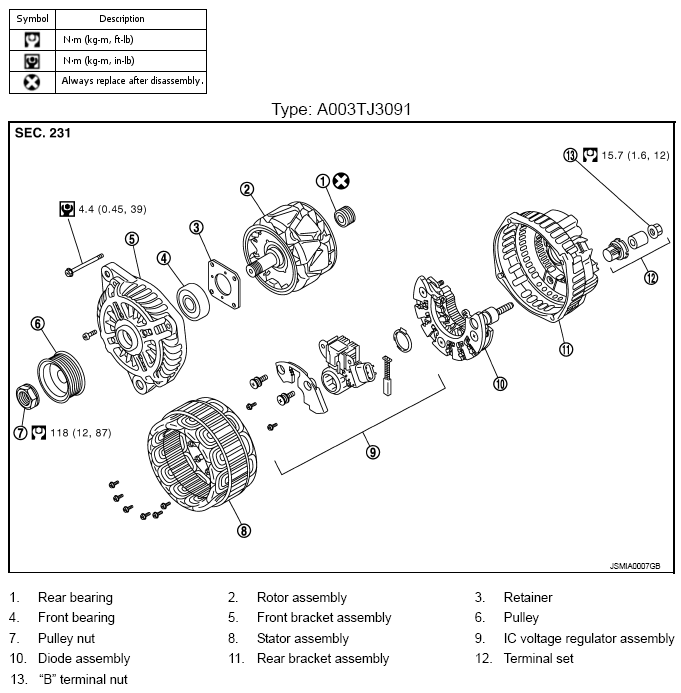

Fig 1: Disassembled View Of Alternator (Type A003TJ3091) With Torque Specifications
G09004688Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols in the figure.
