Removal and Installation: Removal

  1. Remove the front door finisher. Refer to "DRIVER SIDE: REMOVAL AND INSTALLATION ".
  2. Remove the front door glass. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the power window motor harness connector (1) and remove the bolts from the module assembly (2).

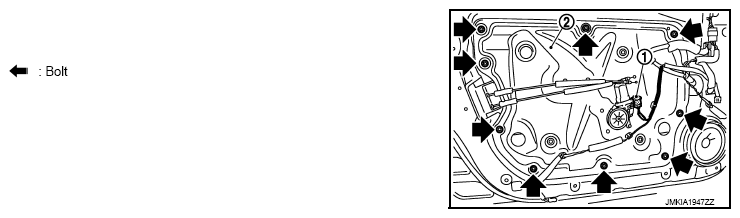

    Fig 1: Locating Front Door Glass Module Assembly
    G08996508Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the module assembly (1) from the door panel (2) and then remove the harnesses fixing pawls with plier as shown in the figure below.

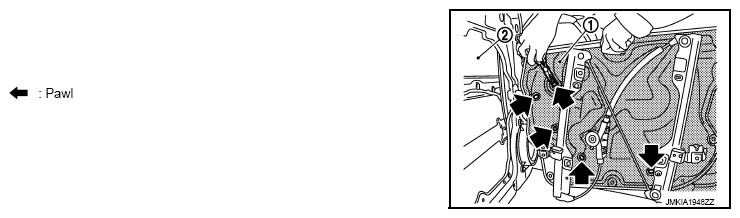

    Fig 2: Locating Harnesses Fixing Pawls With Plier
    G08996509Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the door module assembly from the door panel.
  6. Remove the front door glass run.
