Component Inspection

1. Remove the vehicle height sensor. Refer to "REMOVAL AND INSTALLATION ".
2. Check resistance between vehicle height sensor connector terminals.
   RESISTANCE REFERENCE CHART



   Vehicle height sensor		Condition	Resistance (Approx.)
   Terminal
   1	2	A position	1.9 - 3.0 kΩ
   		B position	320 - 680 Ω
   1	3	Always	1.6 - 2.4 kΩ
   2	3	A position	320 - 680 Ω
   		B position	1.9 - 3.0 kΩ

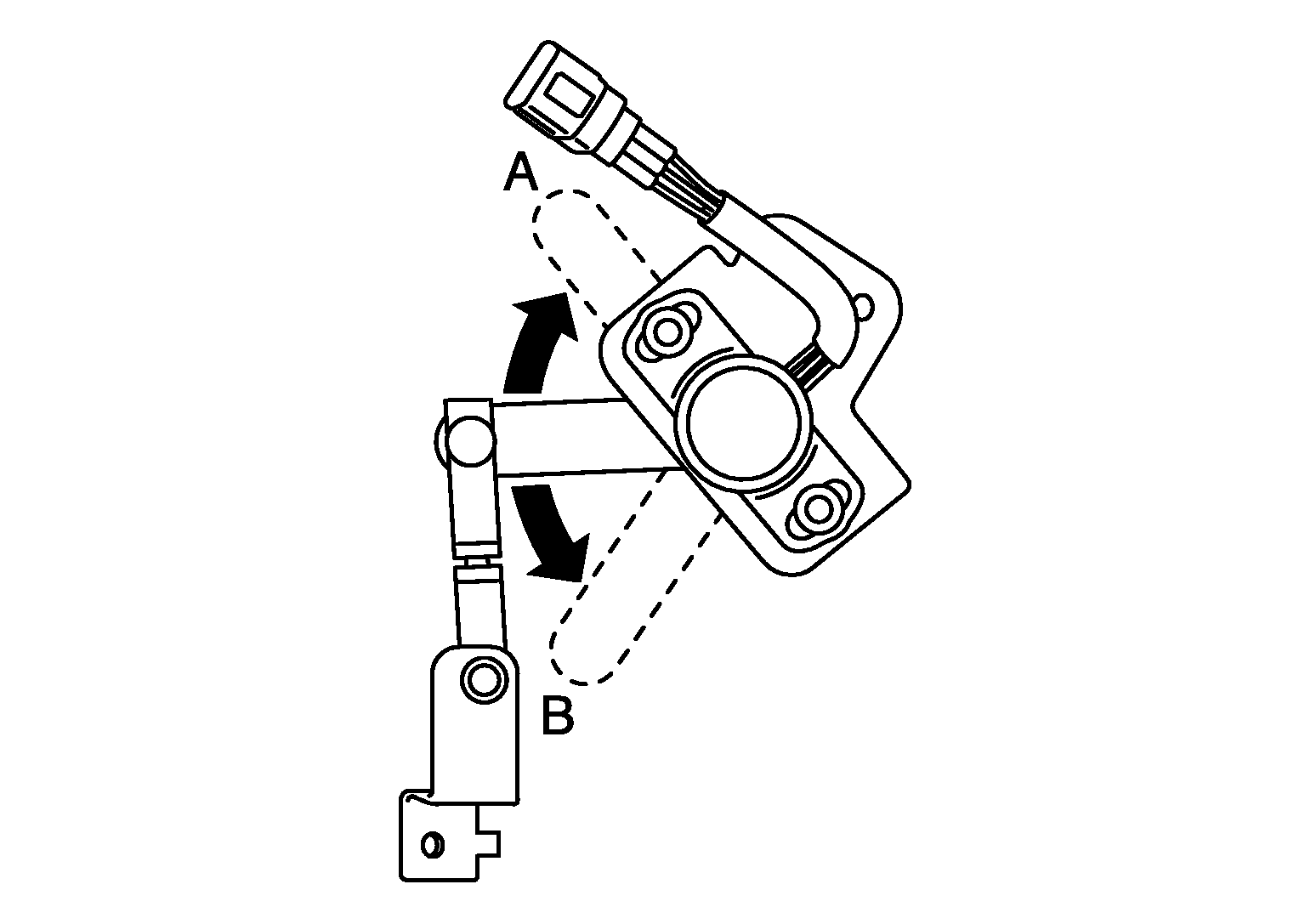

   Fig 1: Removing Vehicle Height Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.

Are the inspection results normal?

YES:

1. Install the vehicle height sensor. Refer to "REMOVAL AND INSTALLATION ".
2. Perform "STANDARD VEHICLE HEIGHT SETTING". Refer to "WORK PROCEDURE ".

NO: Replace the vehicle height sensor. Refer to "REMOVAL AND INSTALLATION ".
