Power Window System: Wiring Diagram

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

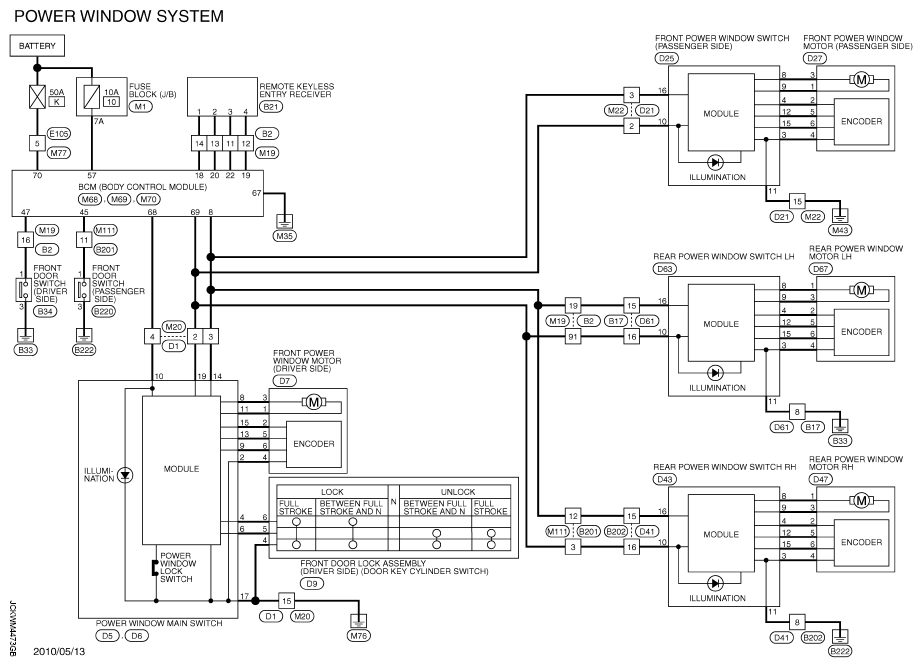

Fig 1: Power Window System - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

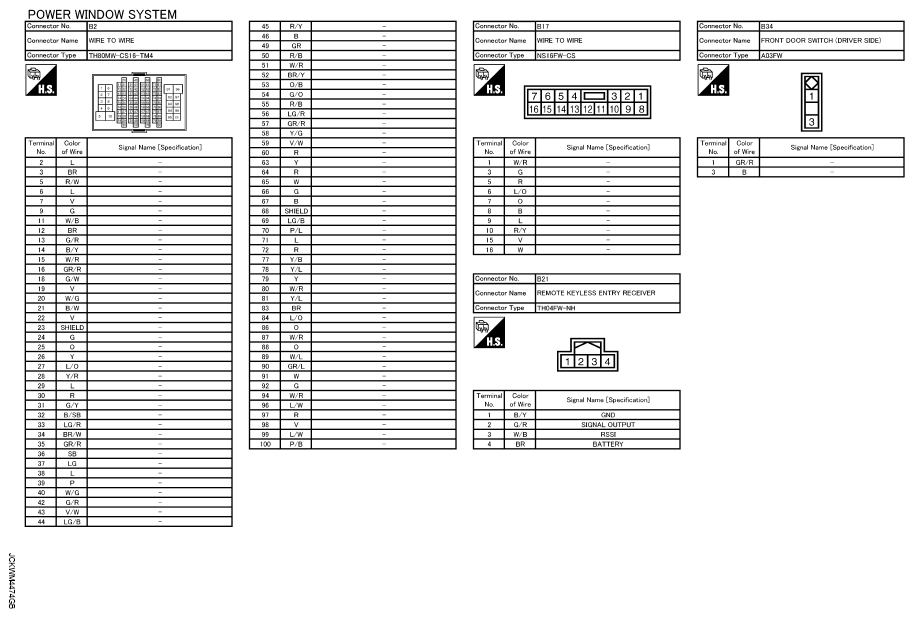

Fig 2: Identifying Power Window System Connectors (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

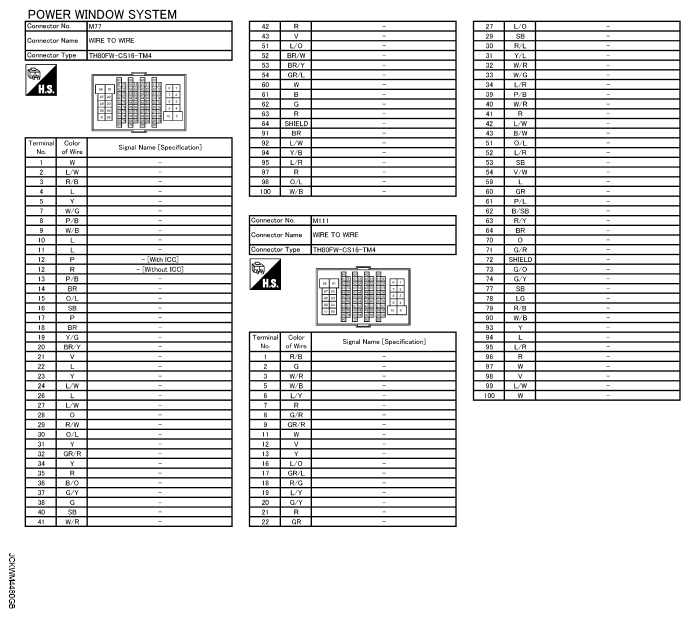

Fig 3: Identifying Power Window System Connectors (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

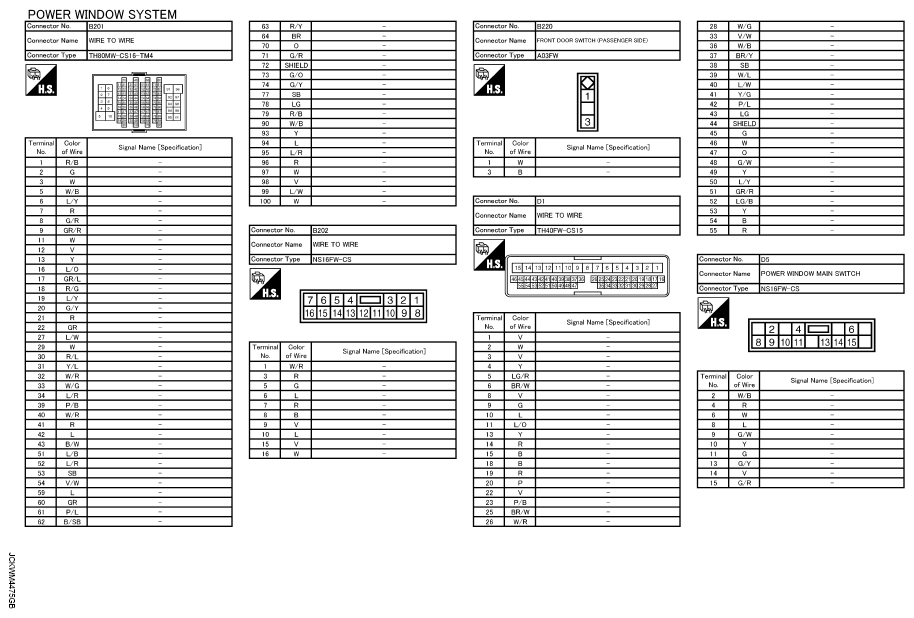

Fig 4: Identifying Power Window System Connectors (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

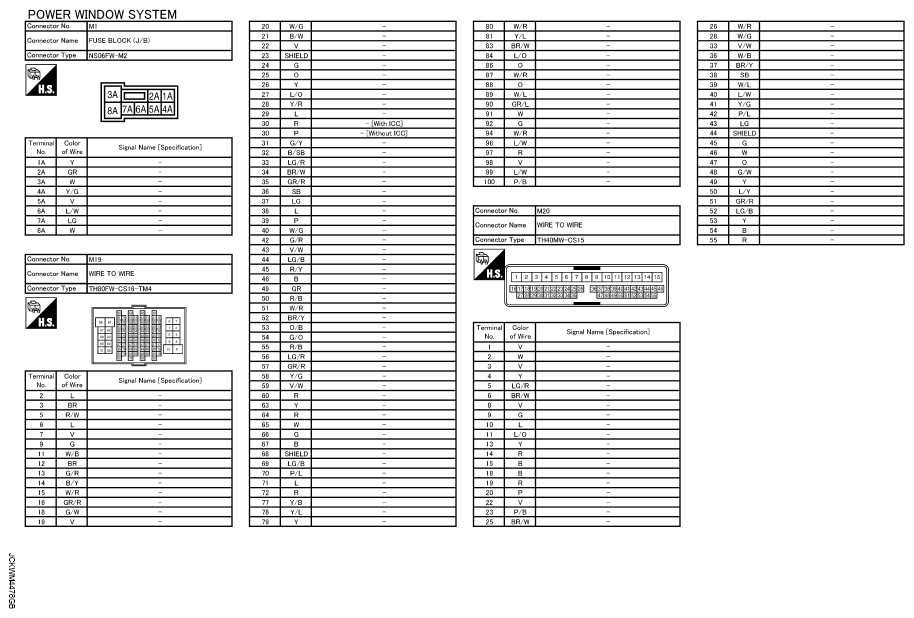

Fig 5: Identifying Power Window System Connectors (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

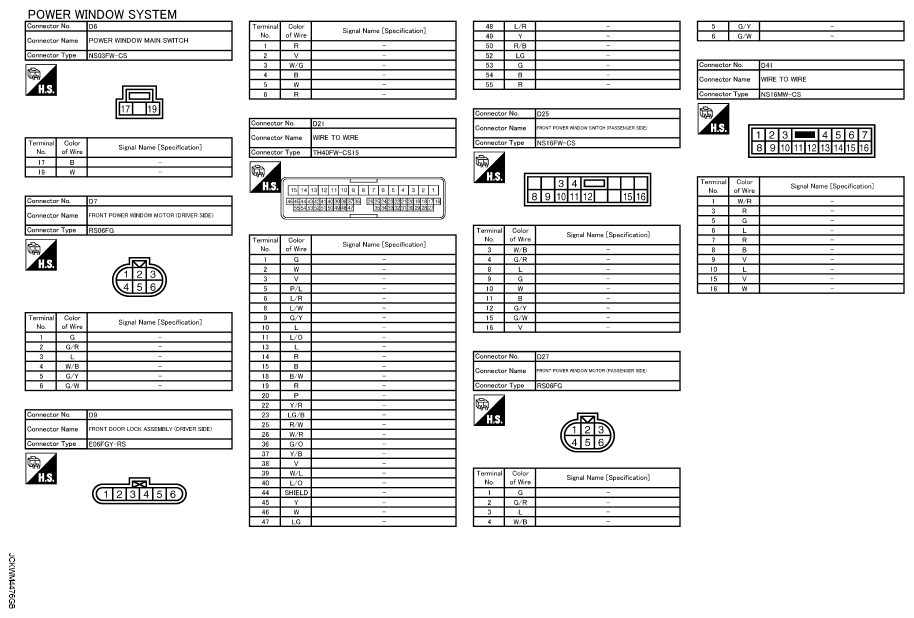

Fig 6: Identifying Power Window System Connectors (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

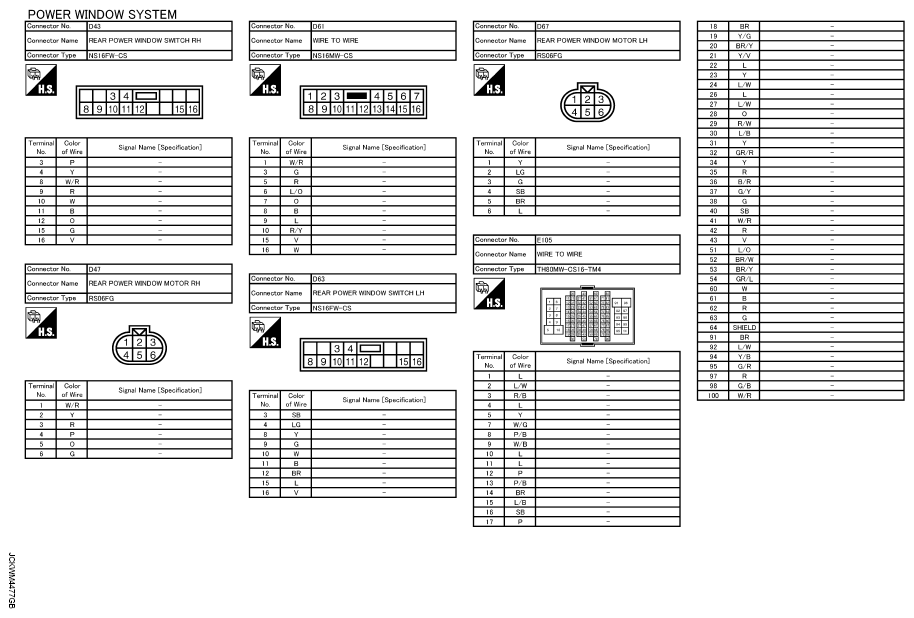

Fig 7: Identifying Power Window System Connectors (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

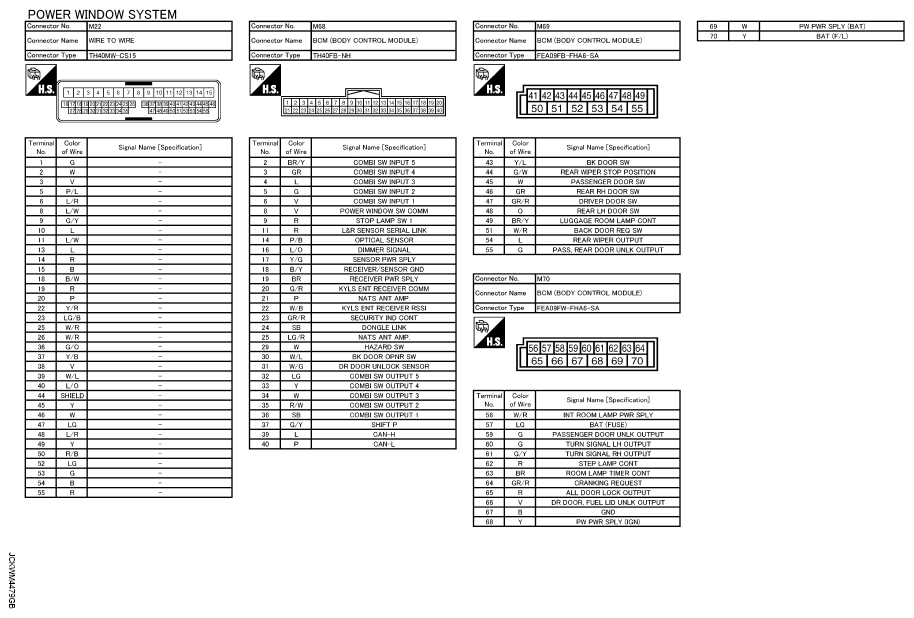

Fig 8: Identifying Power Window System Connectors (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
