Data Monitor

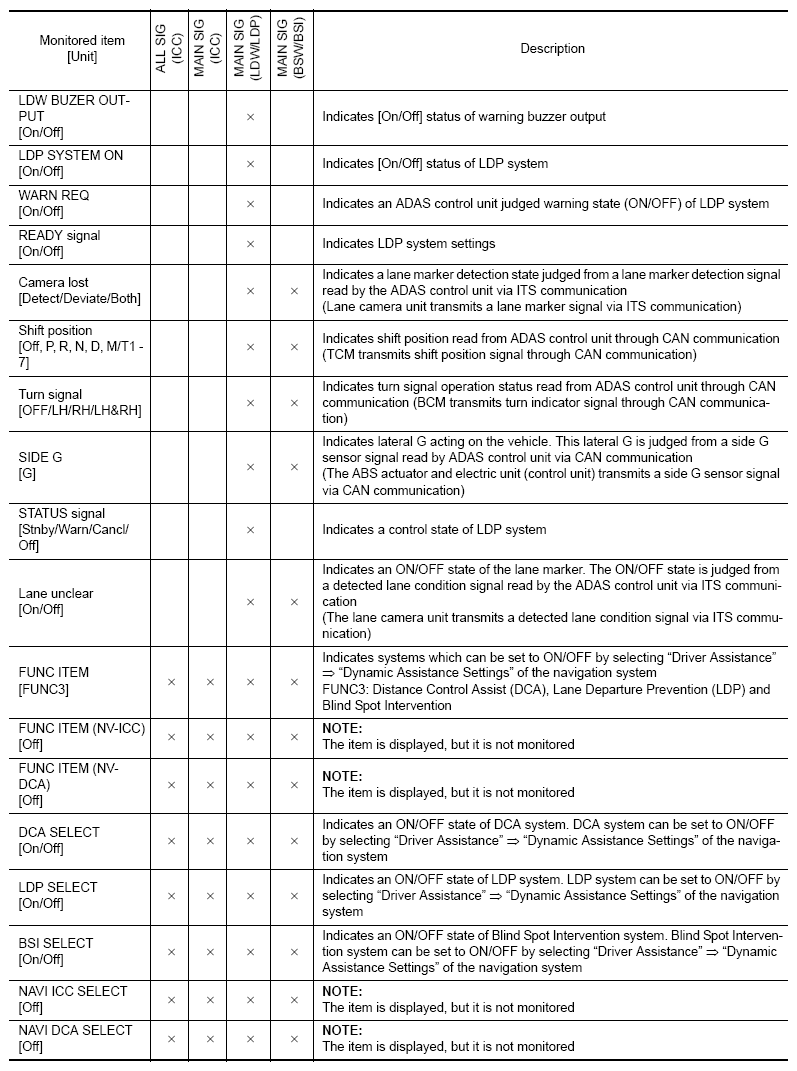

Fig 1: Self Diagnostic Result Monitored Item Chart (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

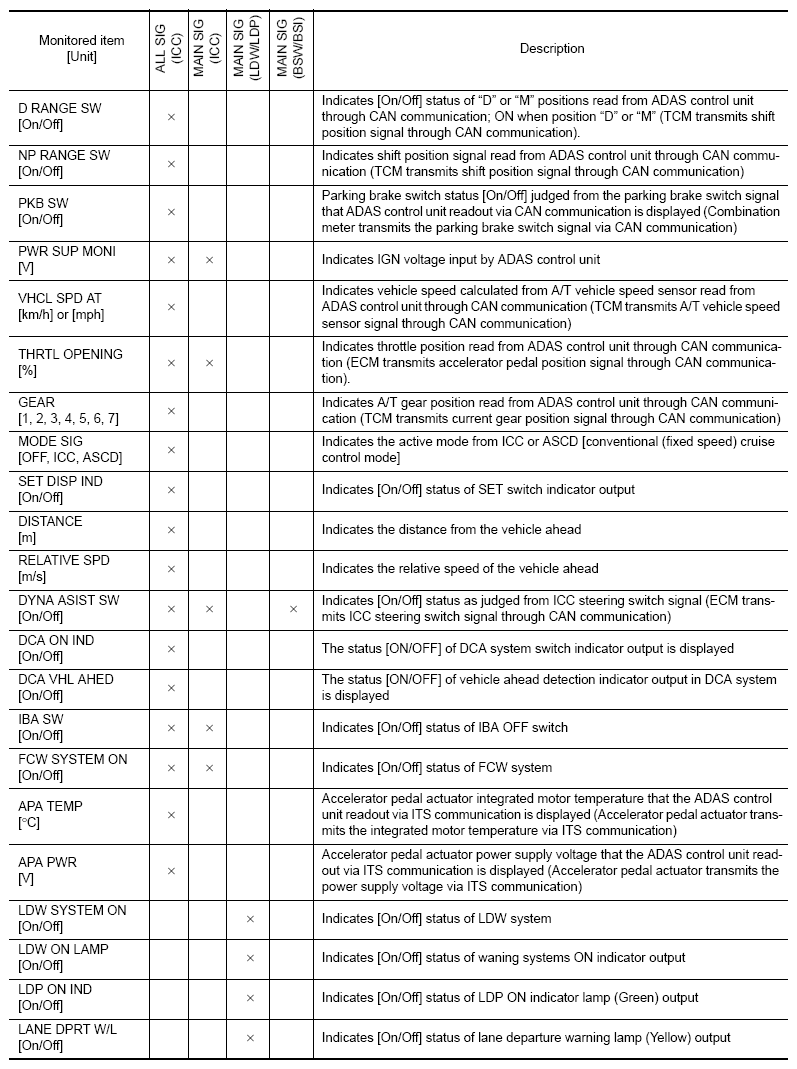

Fig 2: Self Diagnostic Result Monitored Item Chart (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

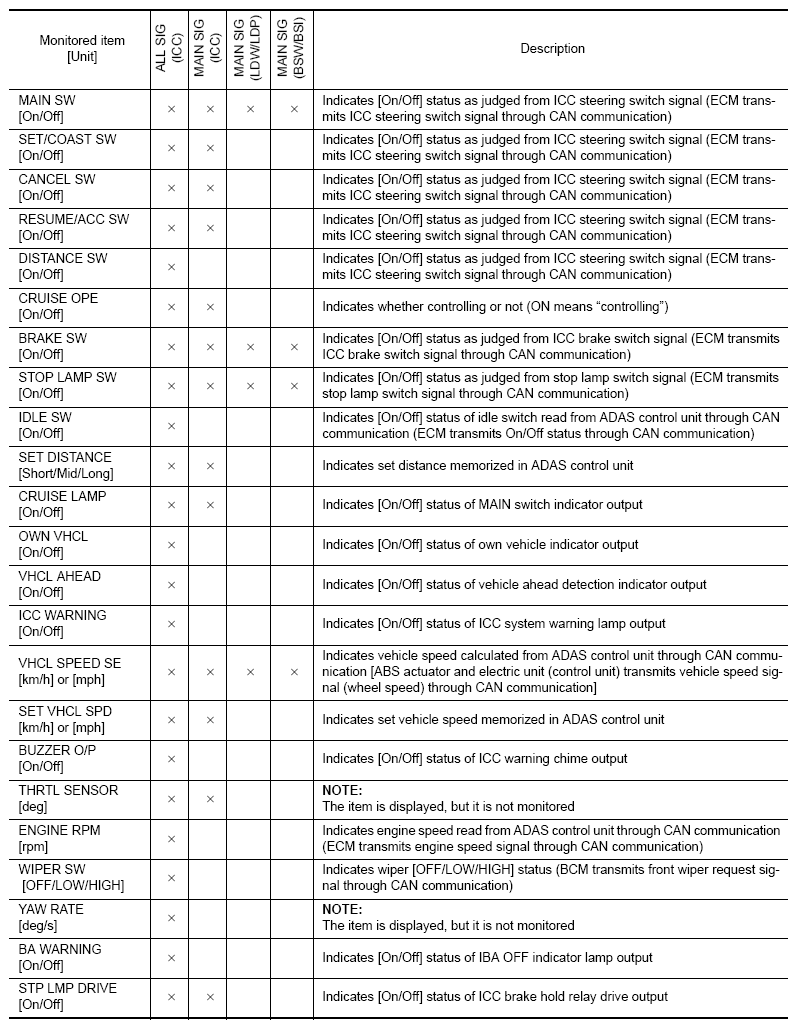

Fig 3: Self Diagnostic Result Monitored Item Chart (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

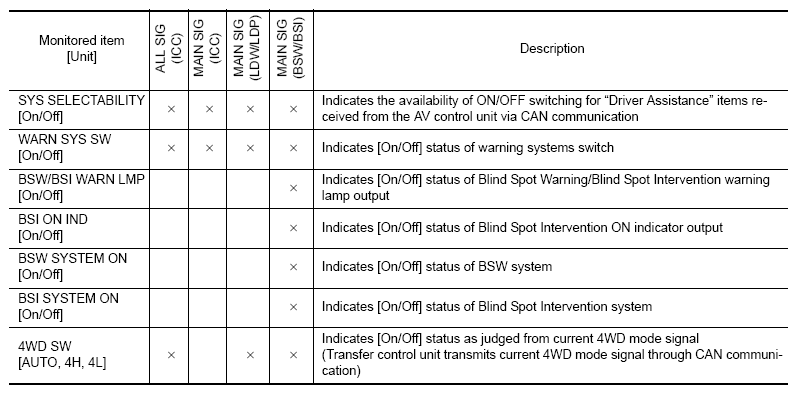

Fig 4: Self Diagnostic Result Monitored Item Chart (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
