When New Cylinder Block Is Used

Check the cylinder bore grade ("1", "2" or "3") on rear side of cylinder block, and select piston of the same grade.

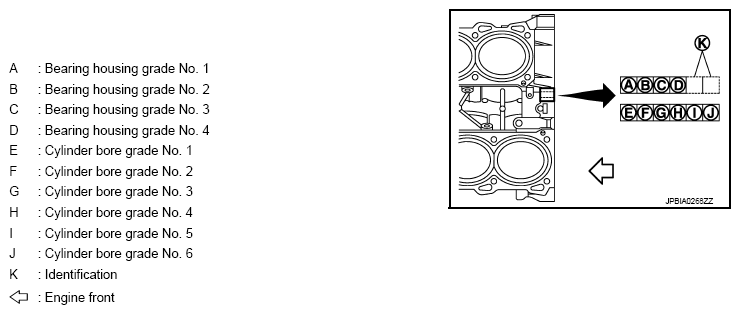

Fig 1: Identifying Piston Identification, Bearing Housing And Cylinder Bore Grade No.
G08647814Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Piston is available with piston pin as a set for the service part. (Only "0" grade piston pin is available.)
