Sectional View: VK56VD

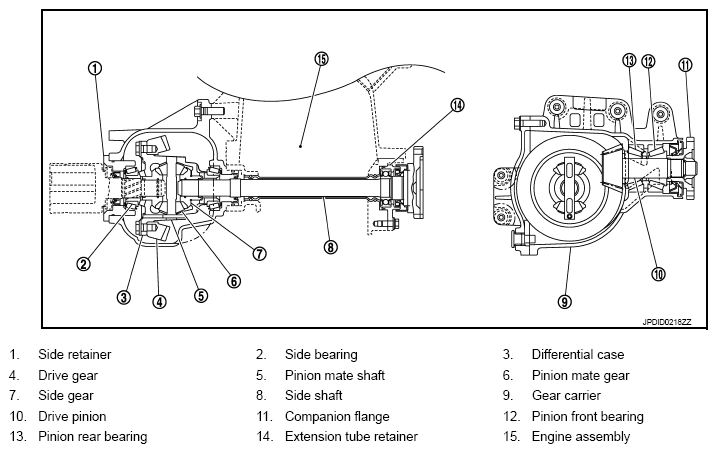

Fig 1: Sectional View Of Front Final Drive (VK56VD)

G08648287

Courtesy of NISSAN NORTH AMERICA, INC.
