Exploded View

WARNING: This page is about a different car, the 2013 Infiniti M56. However, it is still accessible from the selected car via links, so may be relevant.

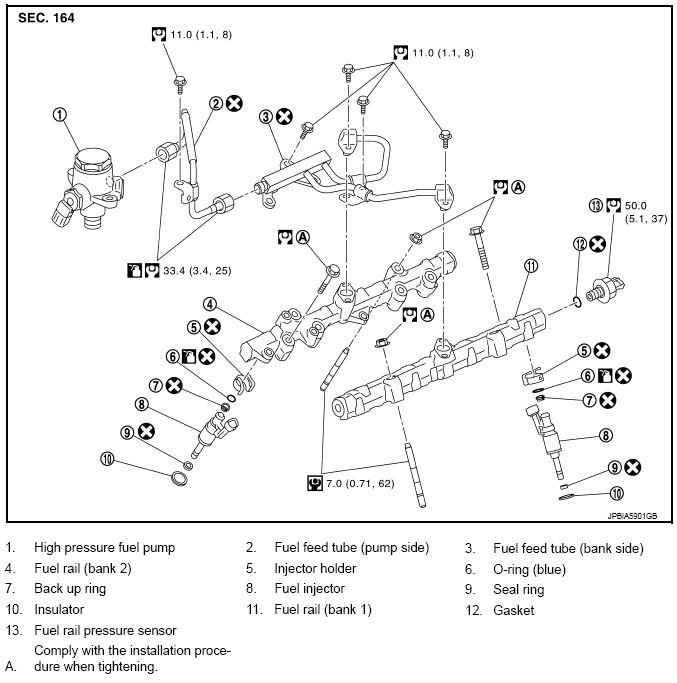

Fig 1: Exploded View Of Fuel Injector And Fuel Tube With Torque Specifications
G08884027Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

CAUTION:
  • Never remove or disassemble parts unless instructed as shown in the figure below.
  • Be sure to follow the tightening instruction to avoid fuel leakage.
