Connecting Rod Bushing Oil Clearance: Notes

WARNING: This page is about a different car, the 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

Measure the inner diameter of connecting rod bushing with an inside micrometer (A).

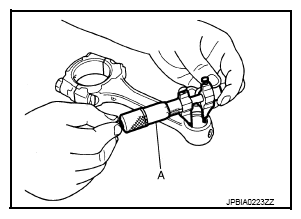

Fig 1: Measuring Inner Diameter Of Connecting Rod Bushing Using Inside Micrometer
G08883911Courtesy of NISSAN NORTH AMERICA, INC.

Standard: Refer to  "CYLINDER BLOCK ".
