A/T Electrical Parts Location

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

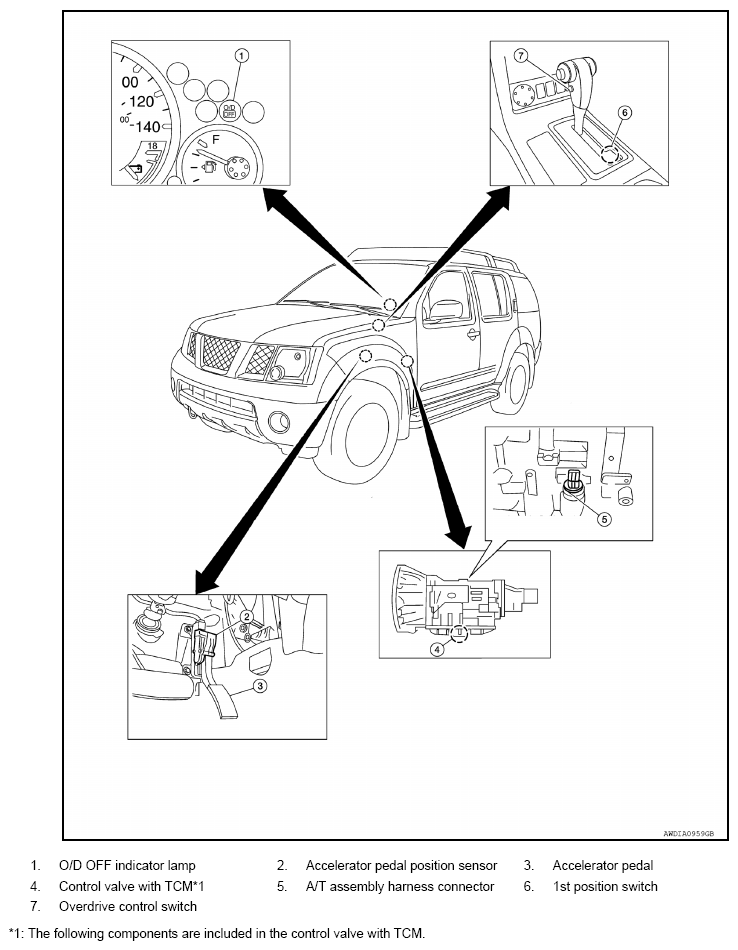

Fig 1: A/T Electrical Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

TCM (transmission control module)
Input speed sensor 1
Input speed sensor 2
Output speed sensor
A/T fluid temperature sensor
Transmission range switch
Line pressure solenoid valve
Torque converter clutch solenoid valve
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Input clutch solenoid valve
Front brake solenoid valve
Low coast brake solenoid valve
ATF pressure switch 2
