Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Set key interlock cable to key cylinder and install holder.
Set shift selector handle to "P" position.
Turn ignition key to "LOCK" position.

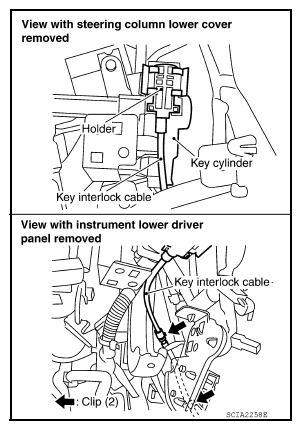

Fig 1: Identifying Key Interlock Cable
Courtesy of NISSAN NORTH AMERICA, INC.
Insert key interlock rod (A) into adjuster holder (B).
Install casing cap (C) to bracket (D).
Move slider (E) toward key interlock rod (A) to secure adjuster holder (B) to key interlock rod (A).

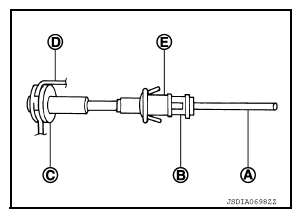

Fig 2: Identifying Key Interlock Rod Components
Courtesy of NISSAN NORTH AMERICA, INC.
Install instrument lower panel LH. Refer to "EXPLODED VIEW ".
Install the center console. Refer to "EXPLODED VIEW ".
