Power Distribution Connector Terminal Identification

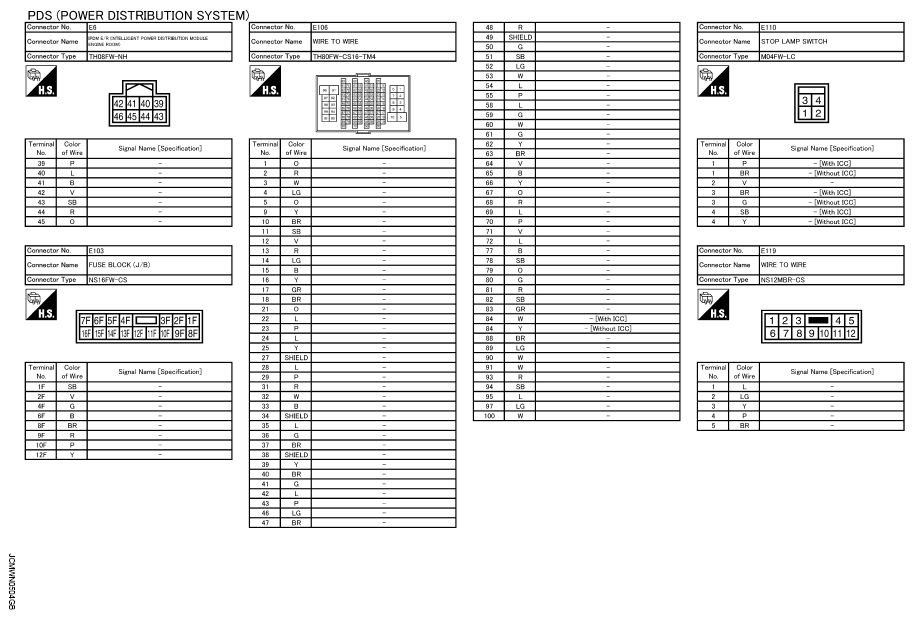

Fig 1: Identifying Power Distribution System Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

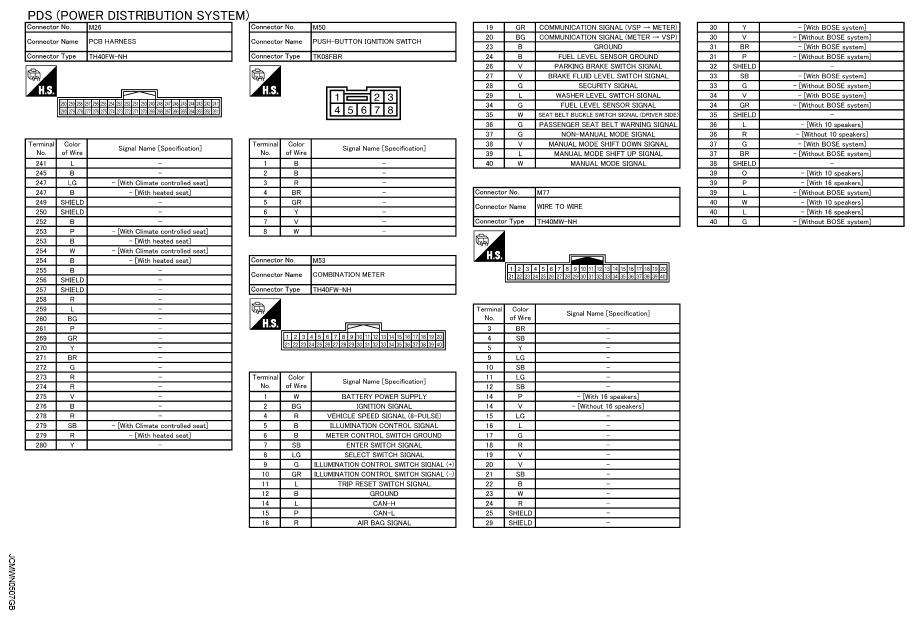

Fig 2: Identifying Power Distribution System Connectors (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

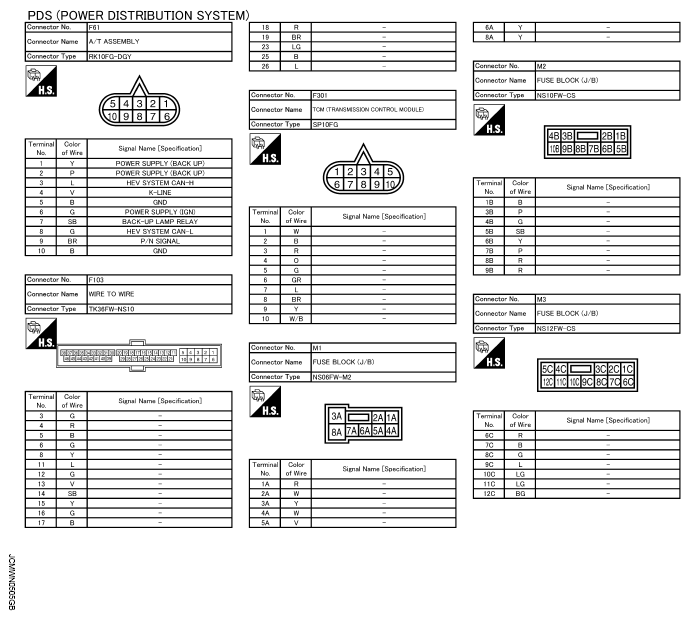

Fig 3: Identifying Power Distribution System Connectors (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

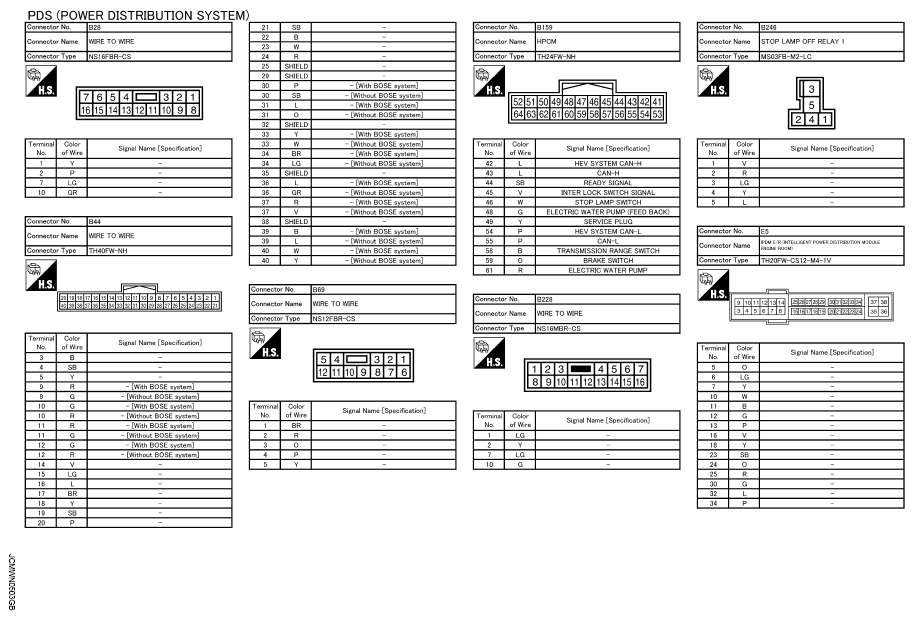

Fig 4: Identifying Power Distribution System Connectors (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

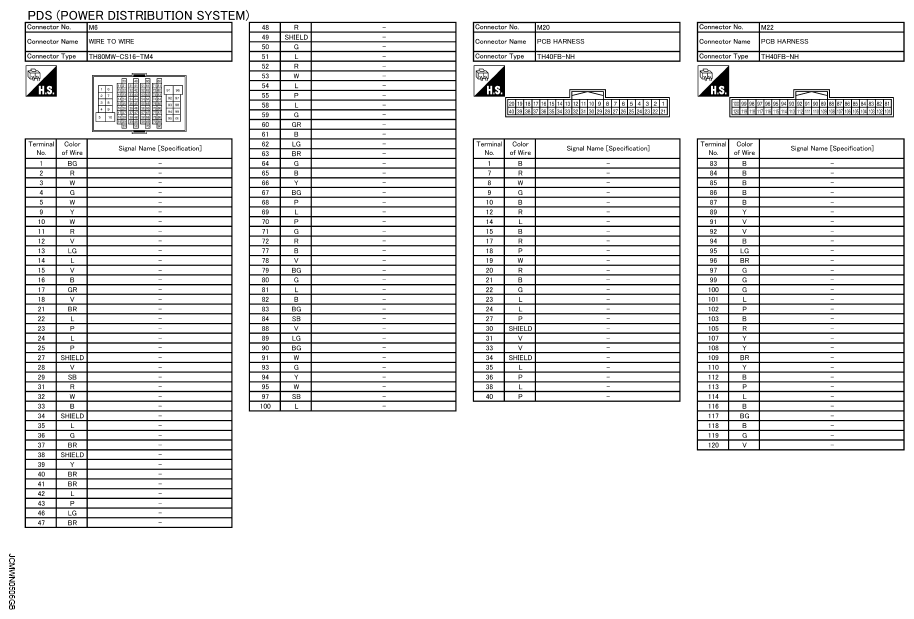

Fig 5: Identifying Power Distribution System Connectors (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

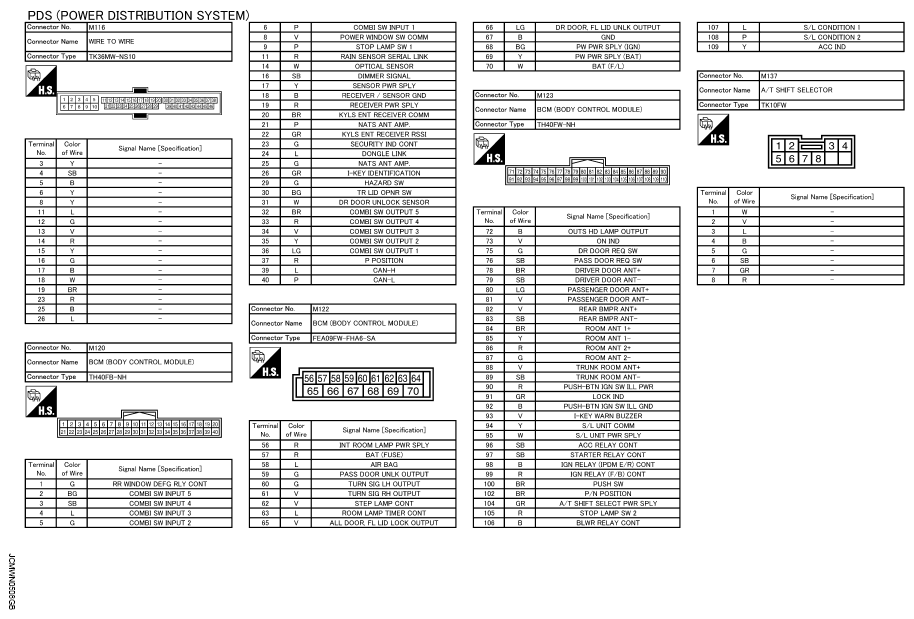

Fig 6: Identifying Power Distribution System Connectors (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Power Distribution System Connectors (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
