M35h
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Driver Assistance System (FCW)
>>
System Description
>>
Diagnosis System (ADAS Control Unit)
>>
CONSULT Function (ICC/ADAS)
>>
Data Monitor
Data Monitor

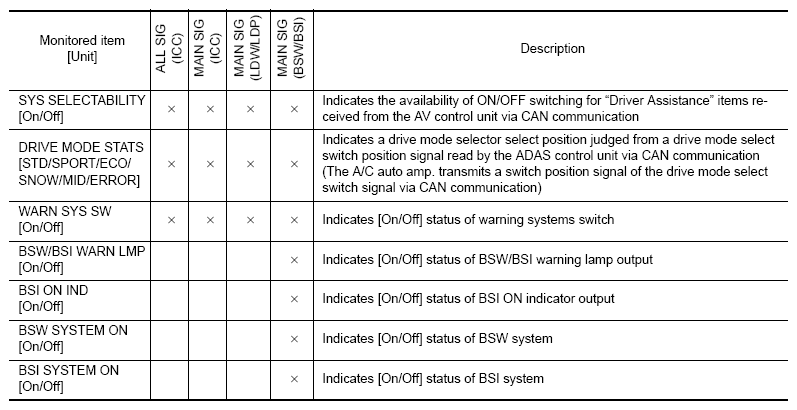

Fig 1: Self Diagnostic Result Data Monitor Chart (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

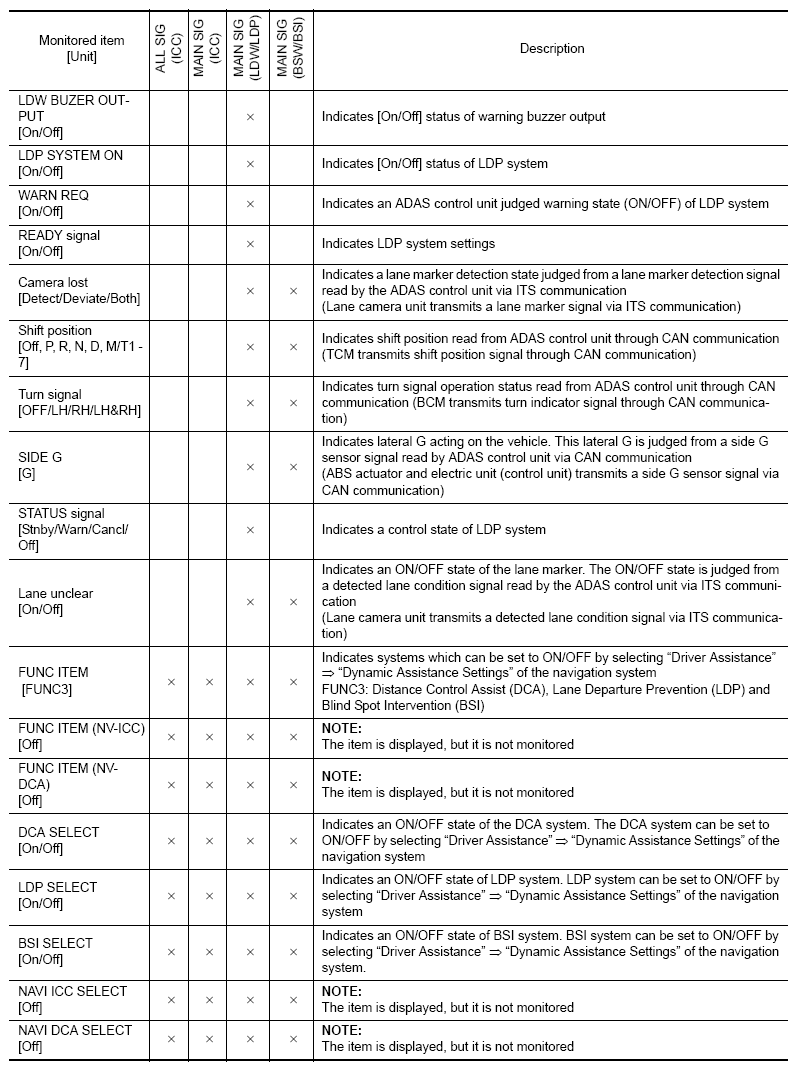

Fig 2: Self Diagnostic Result Data Monitor Chart (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

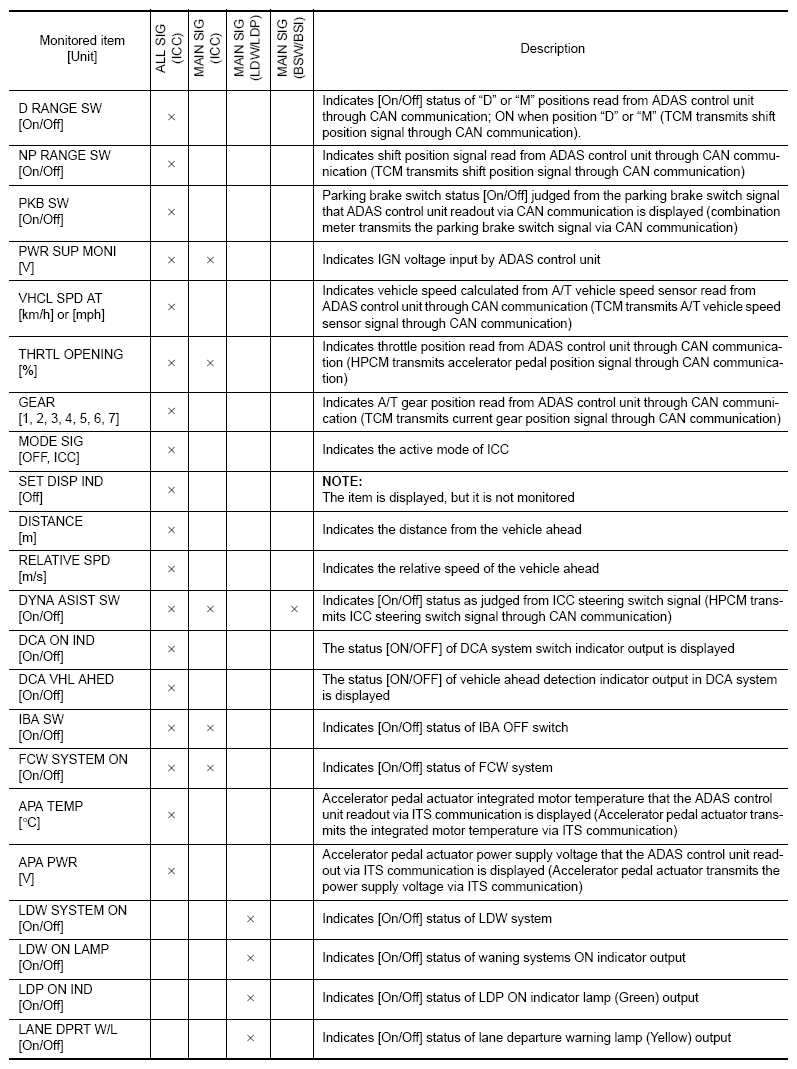

Fig 3: Self Diagnostic Result Data Monitor Chart (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

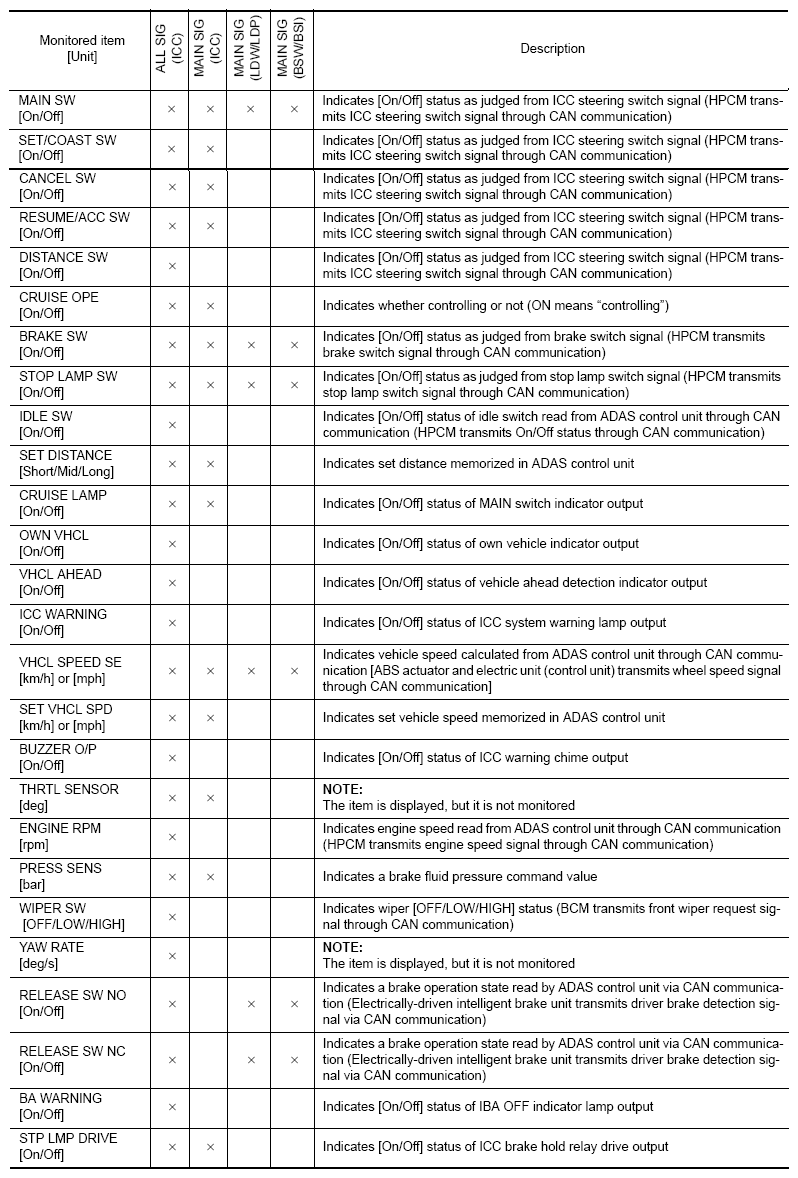

Fig 4: Self Diagnostic Result Data Monitor Chart (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
