M35h
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Driver Assistance System (DCA)
>>
System Description
>>
Diagnosis System (ADAS Control Unit)
>>
CONSULT Function (ICC/ADAS)
>>
Data Monitor
Data Monitor

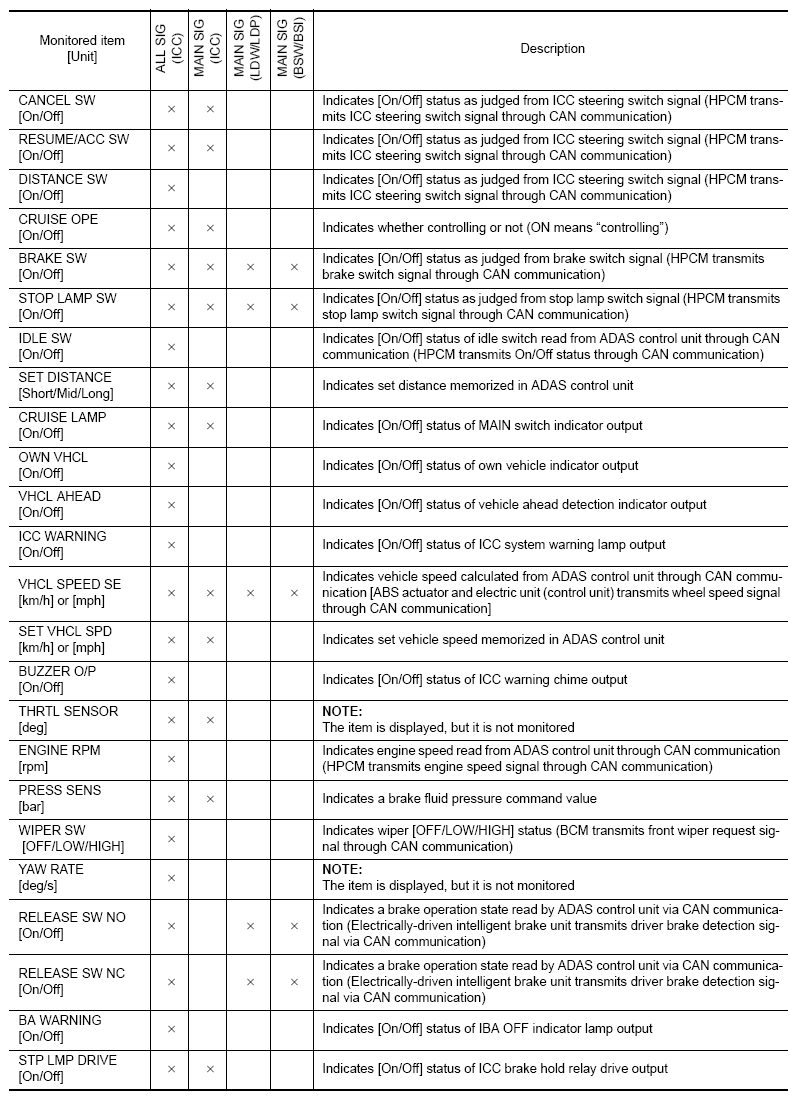

Fig 1: Self Diagnostic Result Data Monitor Chart (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

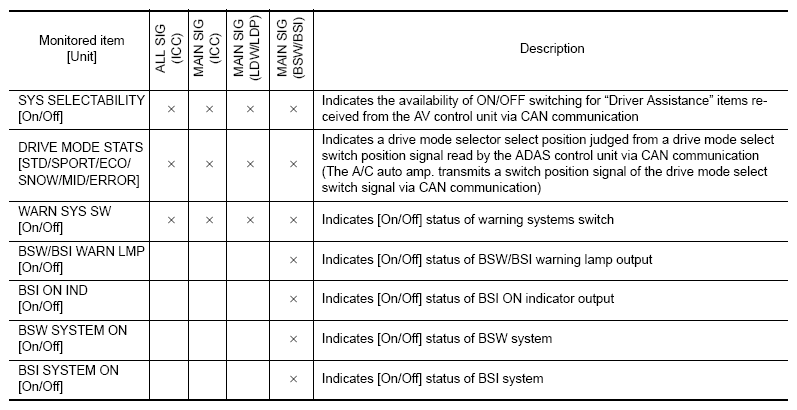

Fig 2: Self Diagnostic Result Data Monitor Chart (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

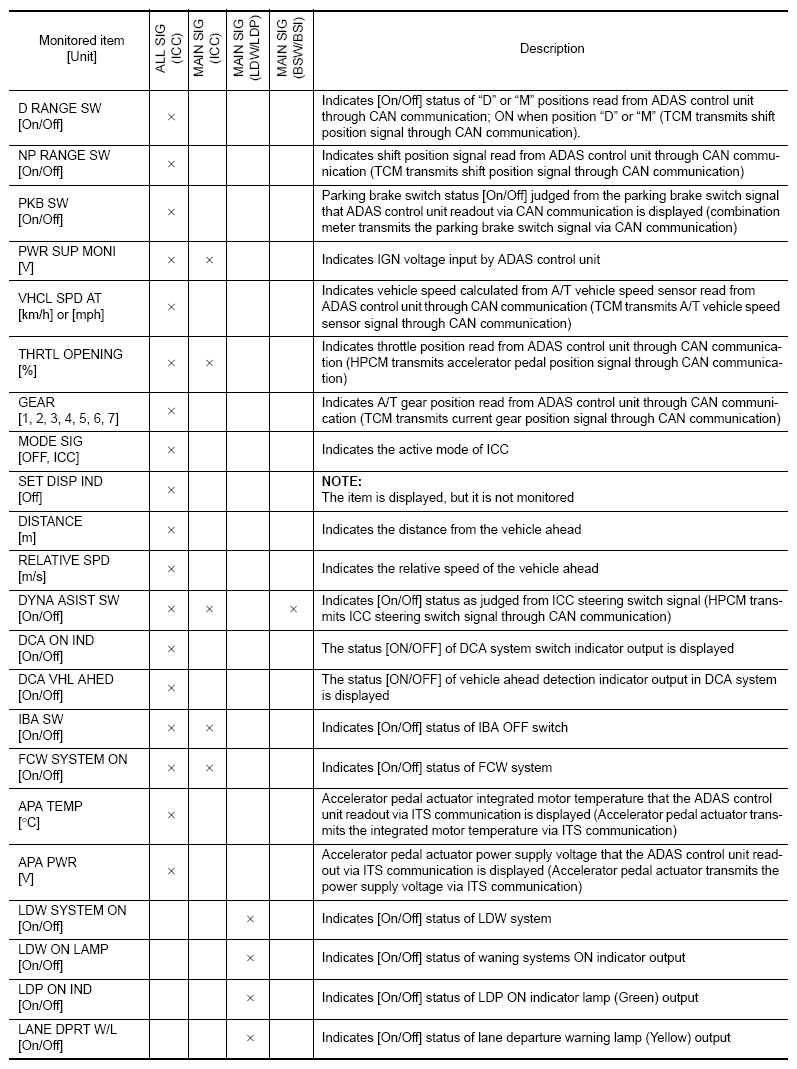

Fig 3: Self Diagnostic Result Data Monitor Chart (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

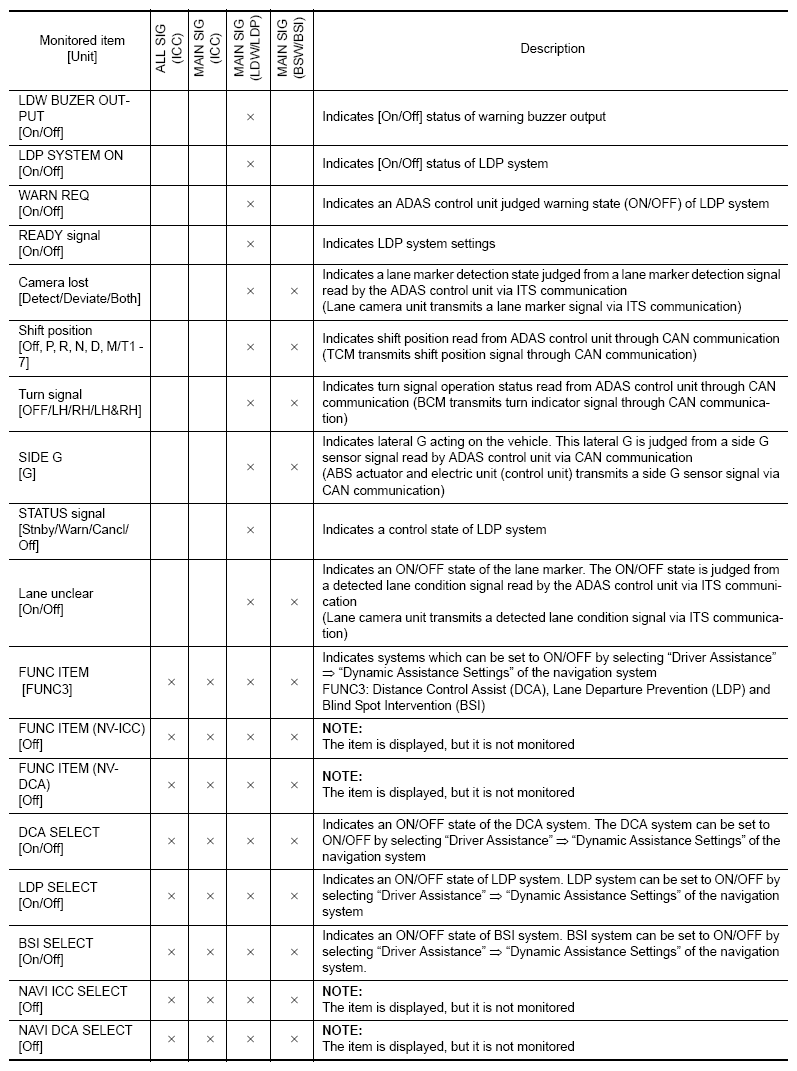

Fig 4: Self Diagnostic Result Data Monitor Chart (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Self Diagnostic Result Data Monitor Chart (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
