Component Parts Location

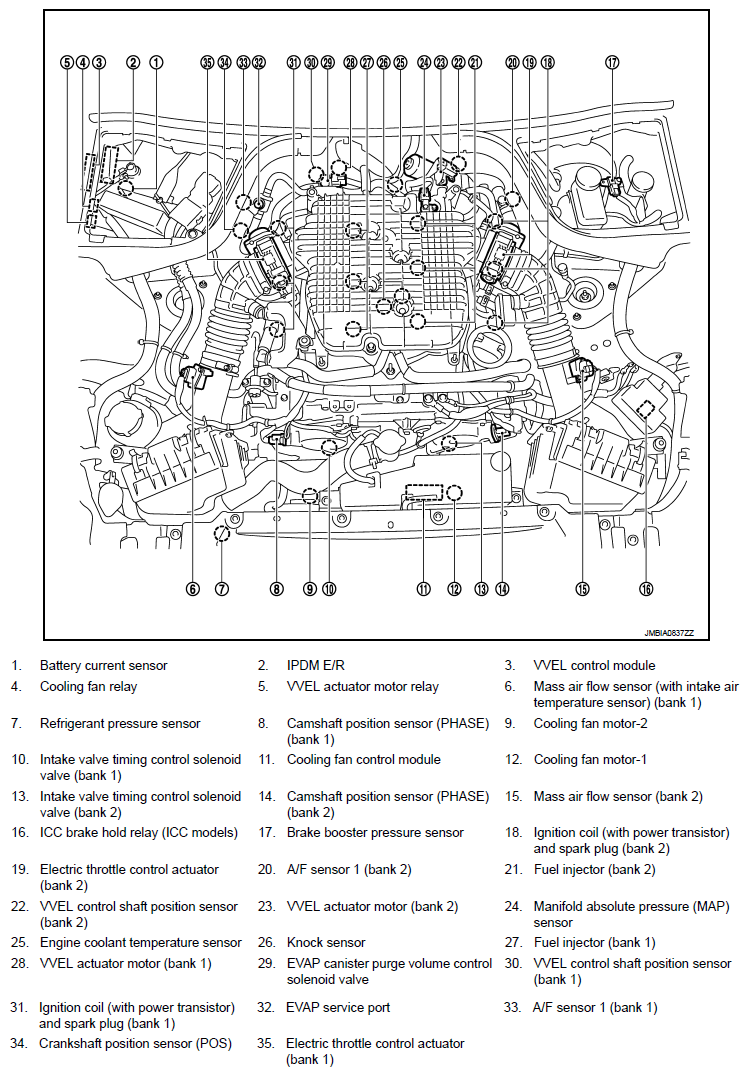

Fig 1: VVEL System Component Parts Location (1 Of 22)

G08452173

Courtesy of NISSAN NORTH AMERICA, INC.

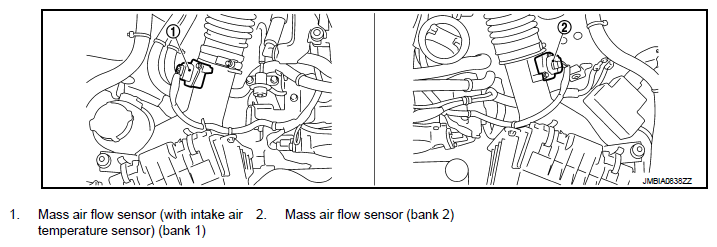

Fig 2: VVEL System Component Parts Location (2 Of 22)

G08452174

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: VVEL System Component Parts Location (3 Of 22)

G08452175

Courtesy of NISSAN NORTH AMERICA, INC.

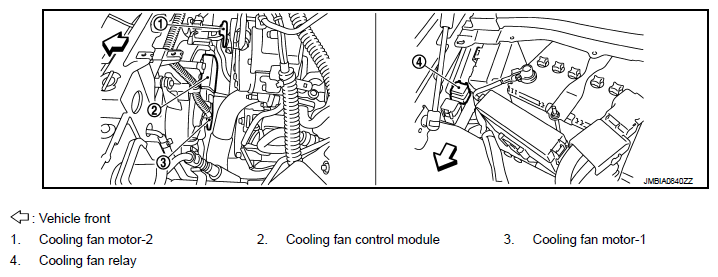

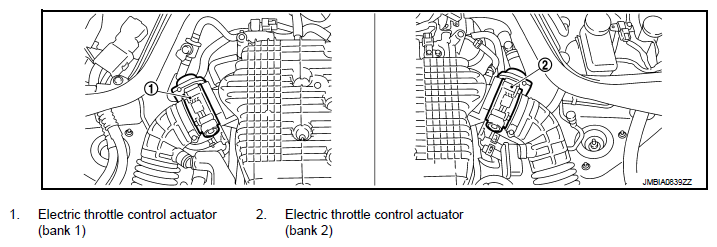

Fig 4: VVEL System Component Parts Location (4 Of 22)

G08452176

Courtesy of NISSAN NORTH AMERICA, INC.

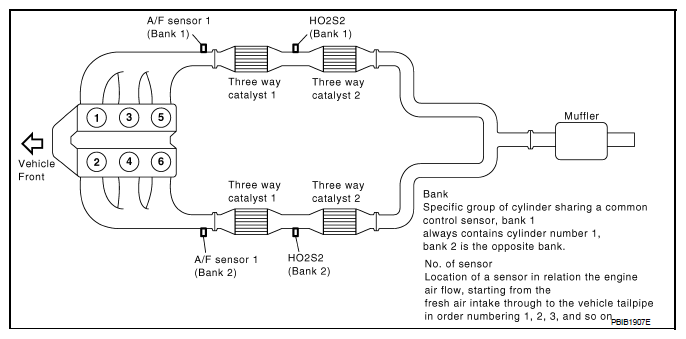

Fig 5: VVEL System Component Parts Location (5 Of 22)

G08452177

Courtesy of NISSAN NORTH AMERICA, INC.

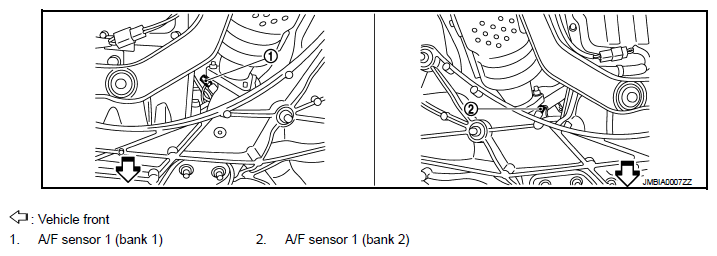

Fig 6: VVEL System Component Parts Location (6 Of 22)

G08452178

Courtesy of NISSAN NORTH AMERICA, INC.

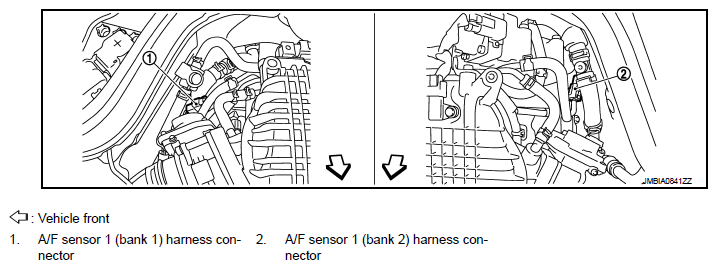

Fig 7: VVEL System Component Parts Location (7 Of 22)

G08452179

Courtesy of NISSAN NORTH AMERICA, INC.

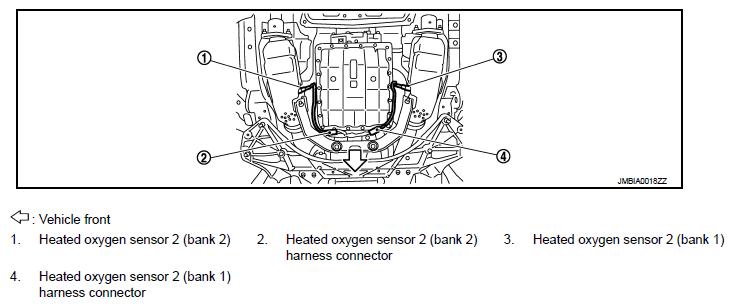

Fig 8: VVEL System Component Parts Location (8 Of 22)

G08452180

Courtesy of NISSAN NORTH AMERICA, INC.

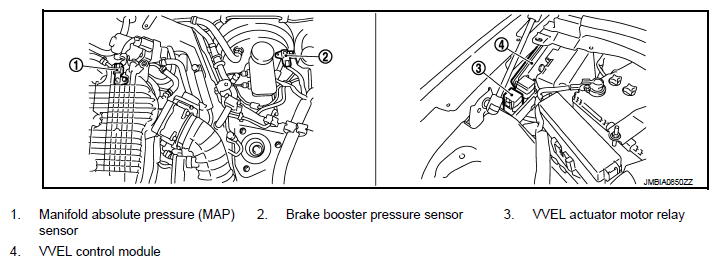

Fig 9: VVEL System Component Parts Location (9 Of 22)

G08452181

Courtesy of NISSAN NORTH AMERICA, INC.

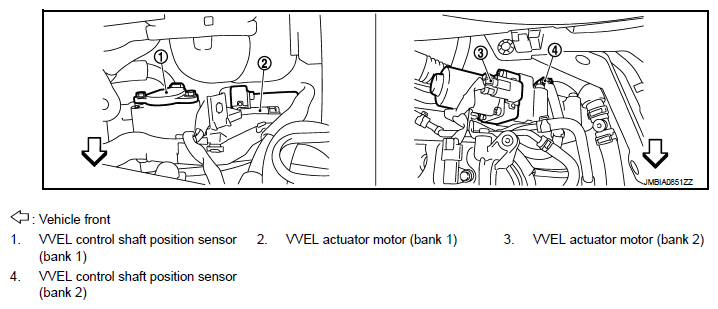

Fig 10: VVEL System Component Parts Location (10 Of 22)

G08452182

Courtesy of NISSAN NORTH AMERICA, INC.

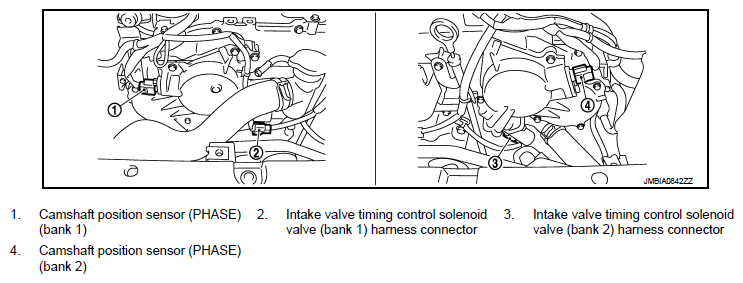

Fig 11: VVEL System Component Parts Location (11 Of 22)

G08452183

Courtesy of NISSAN NORTH AMERICA, INC.

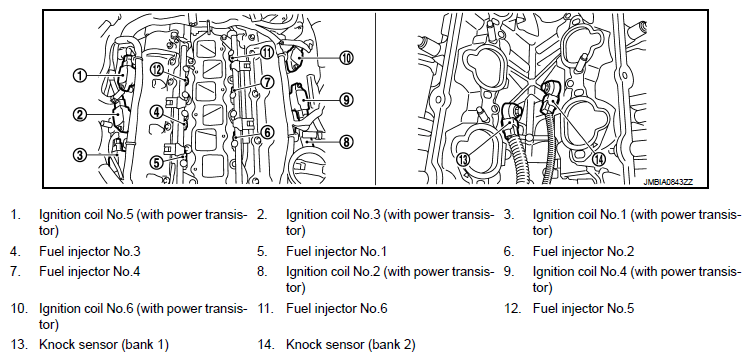

Fig 12: VVEL System Component Parts Location (12 Of 22)

G08452184

Courtesy of NISSAN NORTH AMERICA, INC.

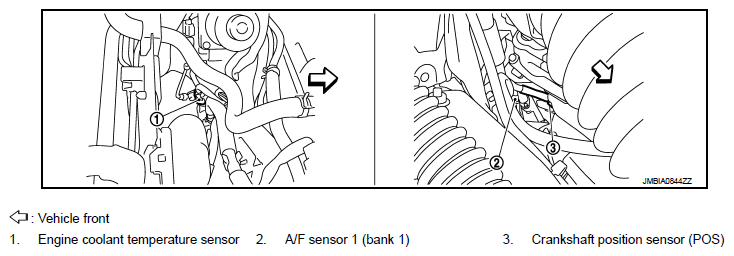

Fig 13: VVEL System Component Parts Location (13 Of 22)

G08452185

Courtesy of NISSAN NORTH AMERICA, INC.

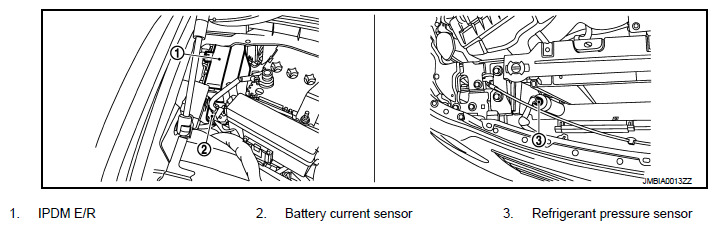

Fig 14: VVEL System Component Parts Location (14 Of 22)

G08452186

Courtesy of NISSAN NORTH AMERICA, INC.

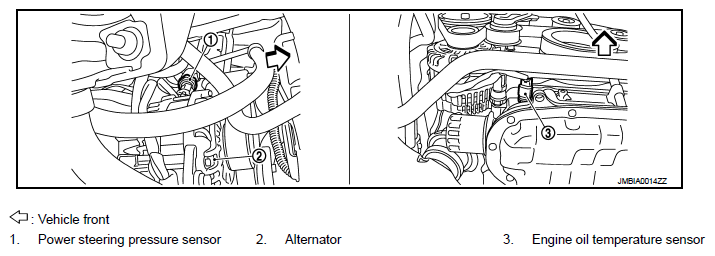

Fig 15: VVEL System Component Parts Location (15 Of 22)

G08452187

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: VVEL System Component Parts Location (16 Of 22)

G08452188

Courtesy of NISSAN NORTH AMERICA, INC.

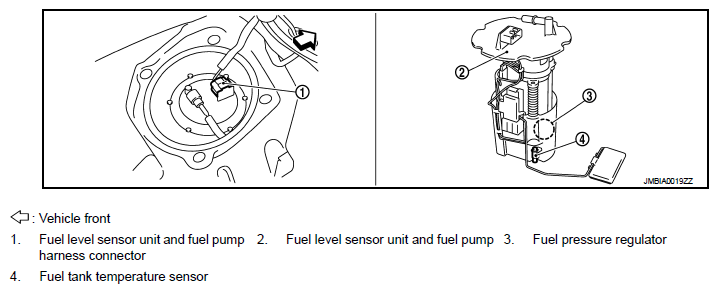

Fig 17: VVEL System Component Parts Location (17 Of 22)

G08452189

Courtesy of NISSAN NORTH AMERICA, INC.

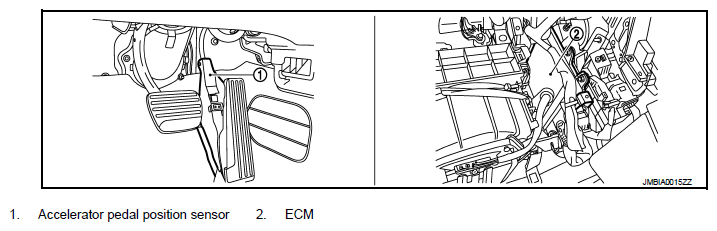

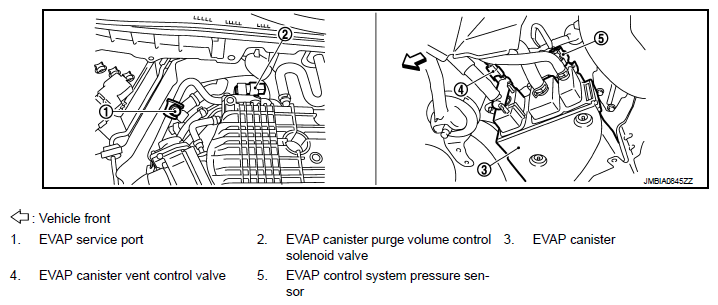

Fig 18: VVEL System Component Parts Location (18 Of 22)

G08452190

Courtesy of NISSAN NORTH AMERICA, INC.

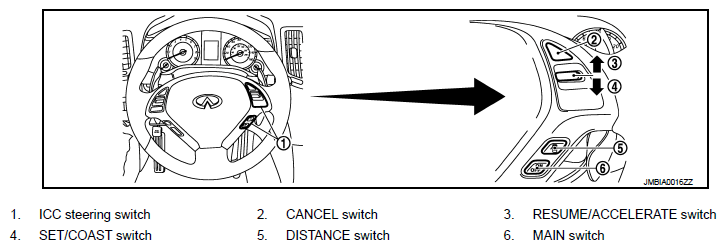

Fig 19: VVEL System Component Parts Location (19 Of 22)

G08452191

Courtesy of NISSAN NORTH AMERICA, INC.

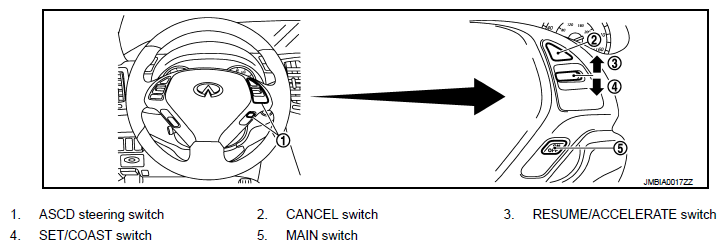

Fig 20: VVEL System Component Parts Location (20 Of 22)

G08452192

Courtesy of NISSAN NORTH AMERICA, INC.

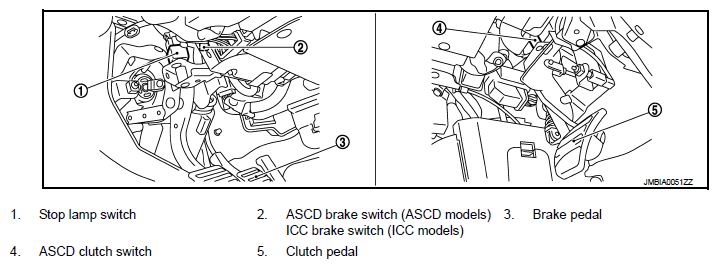

Fig 21: VVEL System Component Parts Location (21 Of 22)

G08452193

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 22: VVEL System Component Parts Location (22 Of 22)

G08452194

Courtesy of NISSAN NORTH AMERICA, INC.
