Cross-Sectional View

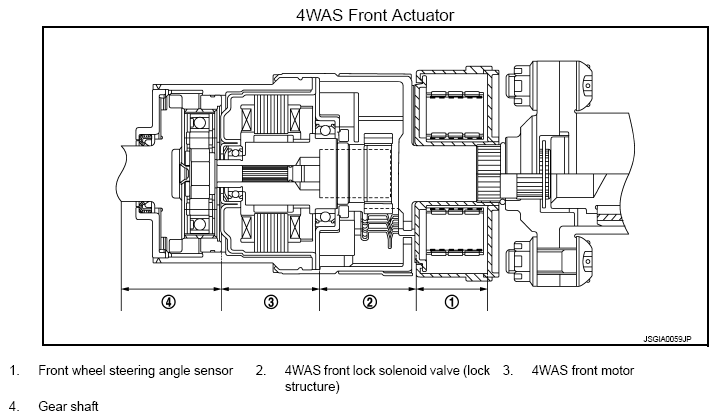

Fig 1: Cross-Sectional View Of 4WAS System (Front Actuator)
G08236297Courtesy of NISSAN NORTH AMERICA, INC.

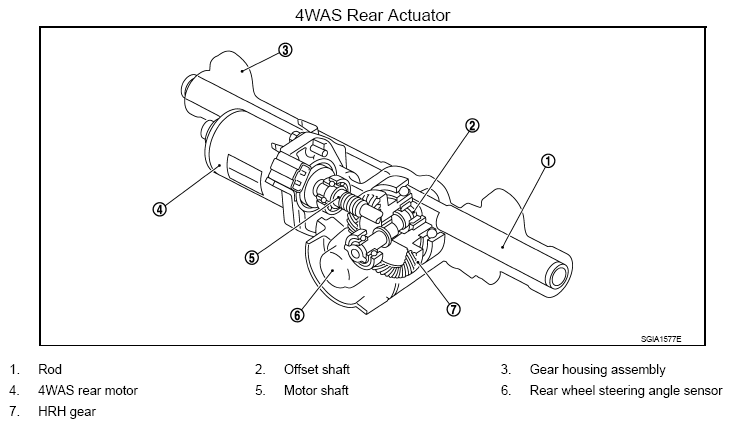

Fig 2: Cross-Sectional View Of 4WAS System (Rear Actuator)
G08236298Courtesy of NISSAN NORTH AMERICA, INC.
