Engine Cooling System

WARNING: This page is about a different variant/trim than selected.

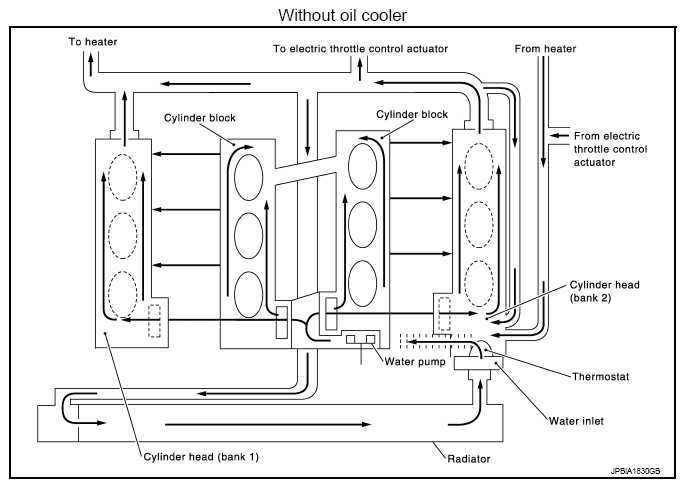

Fig 1: Engine Cooling System (Without Oil Cooler)
G08451886Courtesy of NISSAN NORTH AMERICA, INC.

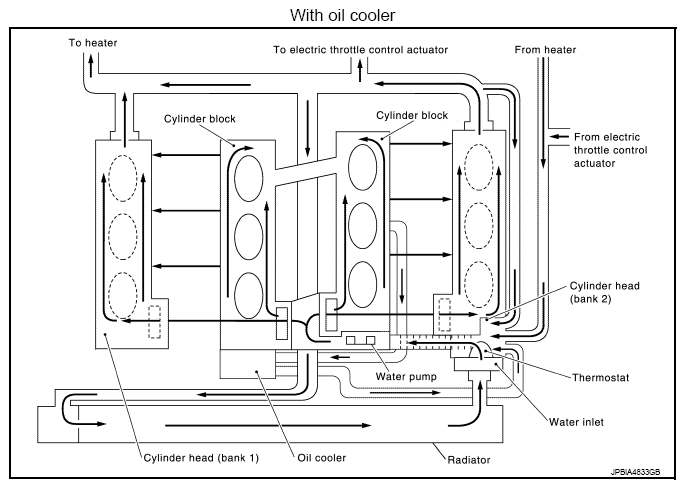

Fig 2: Engine Cooling System (With Oil Cooler)
G08451887Courtesy of NISSAN NORTH AMERICA, INC.
