Engine Cooling System Schematic

WARNING: This page is about a different variant/trim than selected.

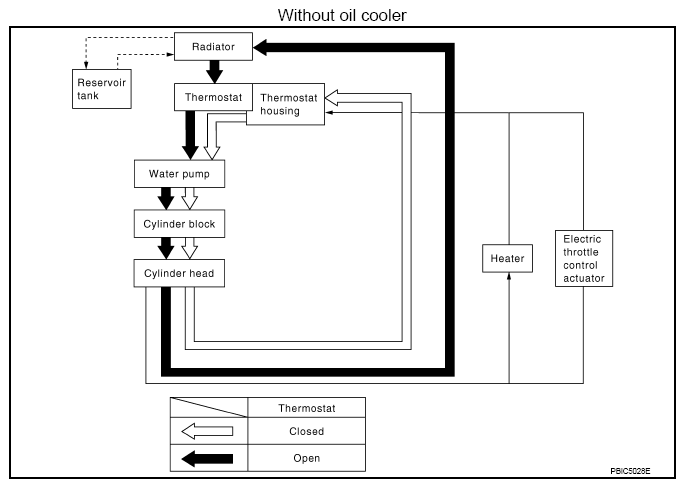

Fig 1: Engine Cooling System Schematic (Without Oil Cooler)
G08451888Courtesy of NISSAN NORTH AMERICA, INC.

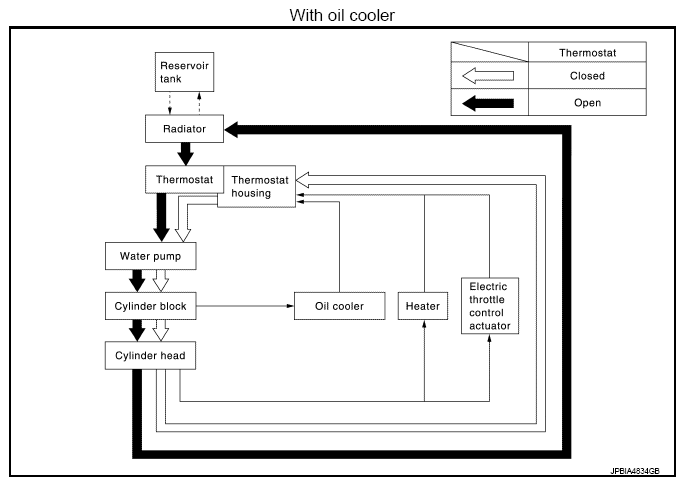

Fig 2: Engine Cooling System Schematic (With Oil Cooler)
G08451889Courtesy of NISSAN NORTH AMERICA, INC.
