Control System

WARNING: This page is about a different variant/trim than selected.

The control system consists of input sensors, switches, unified meter and A/C amp. (microcomputer) and outputs. The relationship of these components is as shown in the figure below:

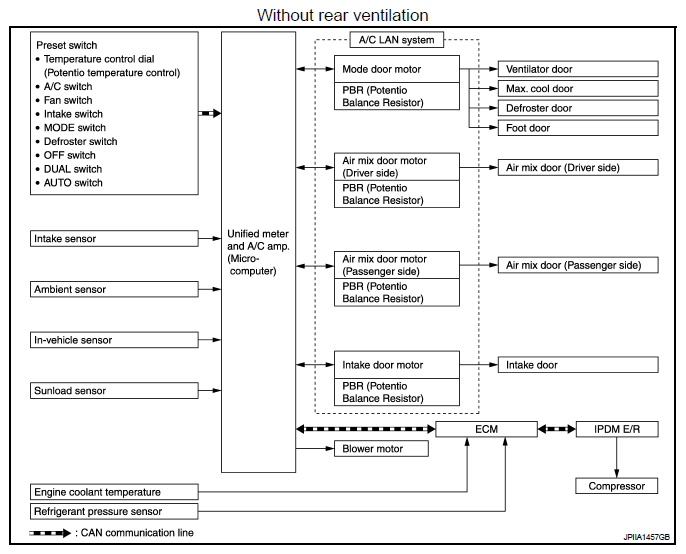

Fig 1: With Left And Right Ventilation Temperature Separately Control System Diagram (Without Rear Ventilation)

Courtesy of NISSAN NORTH AMERICA, INC.

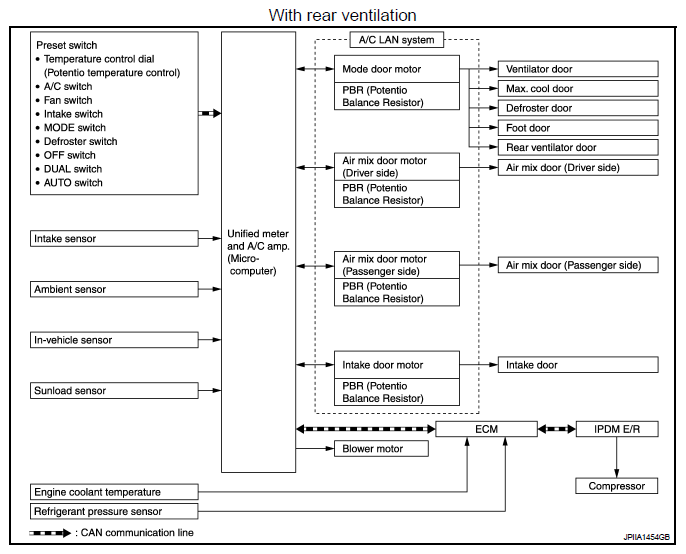

Fig 2: With Left And Right Ventilation Temperature Separately Control System Diagram (With Rear Ventilation)

Courtesy of NISSAN NORTH AMERICA, INC.
