Component Inspection

WARNING: This page is about a different variant/trim than selected.
  1. CHECK SUNLOAD SENSOR
    1. Turn ignition switch ON.
    2. Check voltage between unified meter and A/C amp. harness connector and ground.
    (+) (-)
    Unified meter and A/C amp. -
    Connector Terminal
    M67 46 Ground

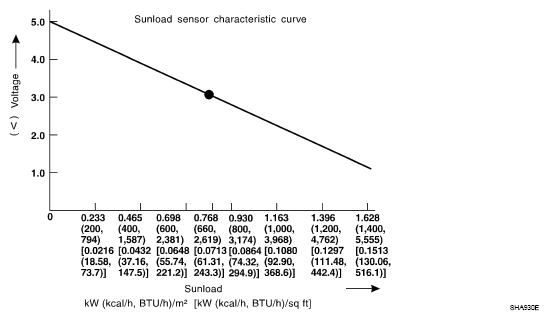

    Fig 1: Sunload Sensor Characteristic Curve
    G04878079Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Select a place where sunshine directly on it when checking sunload sensor.

    Is the inspection result normal?

    YES: INSPECTION END

    NO: Replace sunload sensor.
