Home
>>
Infiniti
>>
2012
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System (Convertible)
>>
Removal And Installation
>>
Steering Gear And Linkage
>>
Exploded View
>>
Removal
Exploded View: Removal

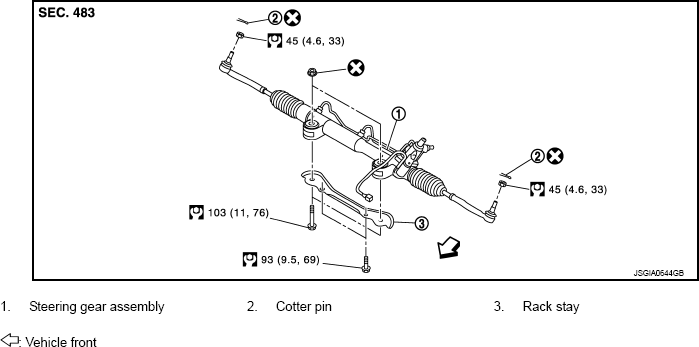

Fig 1: Steering Gear And Linkage Replacement Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
