Functional circuit diagram

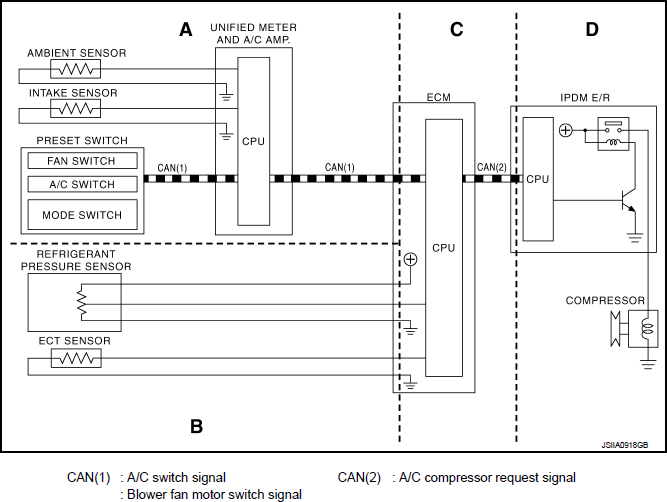

Fig 1: Compressor Control Function - Circuit Diagram
G08444090Courtesy of NISSAN NORTH AMERICA, INC.
FUNCTIONAL INITIAL INSPECTION CHART

Control unit Diagnosis Item Location
A B C D
Unified meter and A/C amp. Self-diagnosis function x - - -
ECM "ENGINE" Self-diagnosis
(CAN system diagnosis)		 - - x -
Data monitor x x x -
IPDM E/R "IPDM E/R" Self-diagnosis
(CAN system diagnosis)		 - - - x
Data monitor - - x -
Auto active test - - - x
