Section 149 (Engine Control System - Introduction (1 Of 2) (Sedan))
>>
Basic Inspection
>>
Diagnosis And Repair Workflow
>>
Work Flow
>>
Overall Sequence (For MEXICO)
Overall Sequence (For MEXICO)
WARNING:
This page is about a different variant/trim than selected.

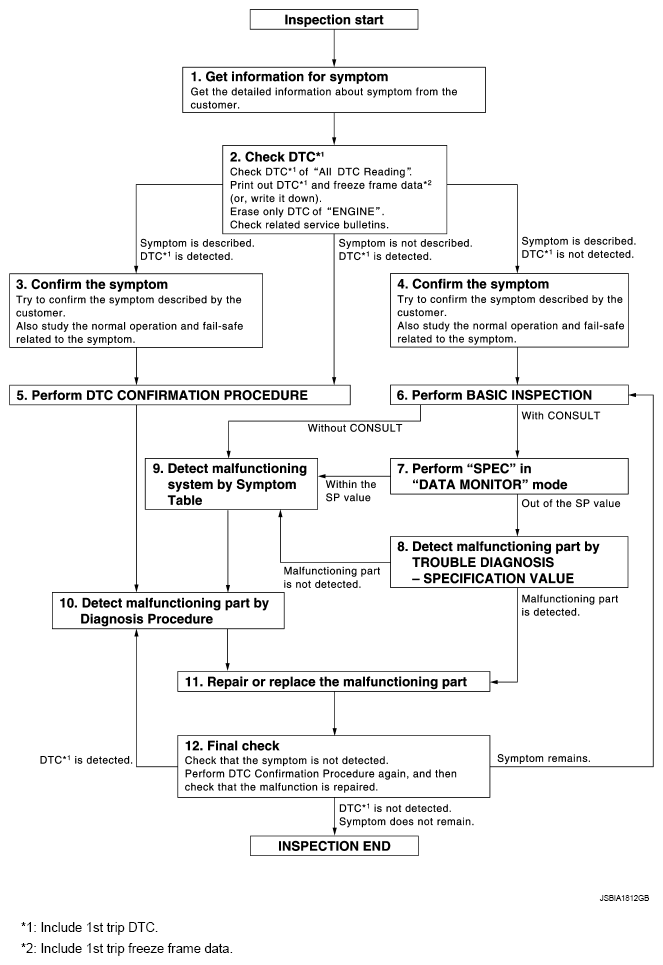

Fig 1: Diagnosis And Repair Workflow Chart (Mexico)
Courtesy of NISSAN NORTH AMERICA, INC.
