Exploded View

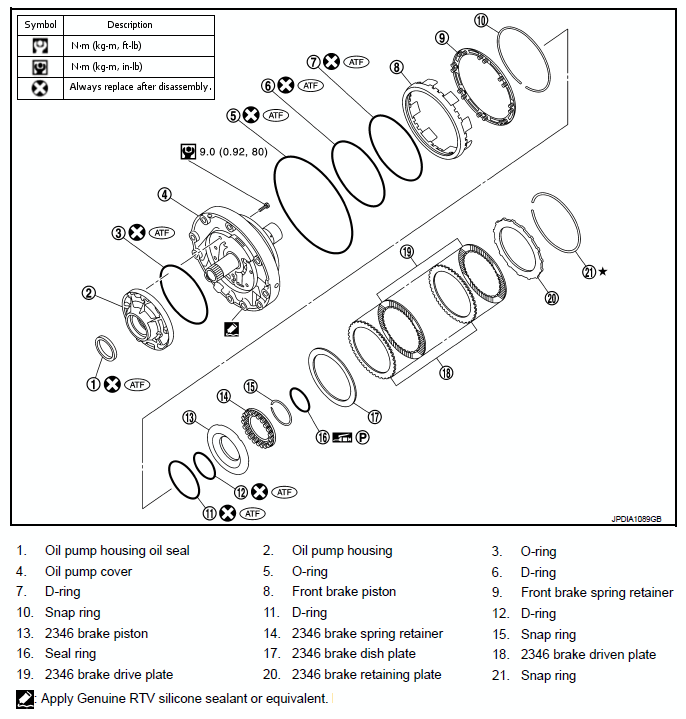

Fig 1: Exploded View Of Oil Pump, 2346 Brake & Front Brake Piston With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
