2WD: Exploded View
2WD: Exploded View

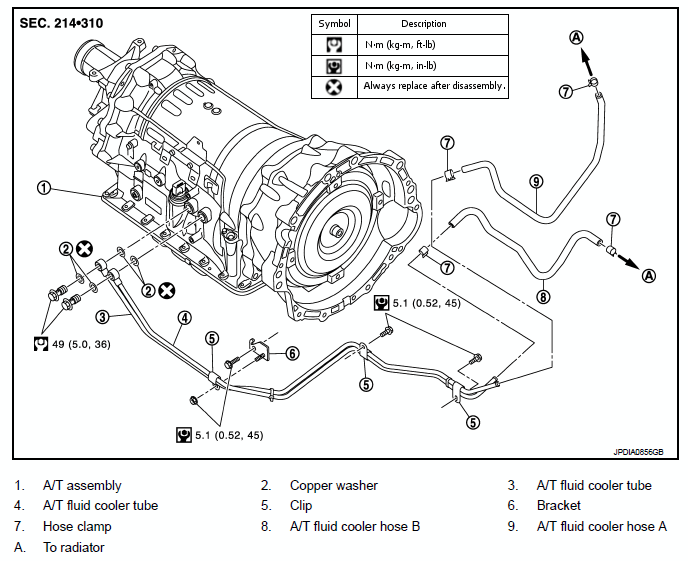

Fig 1: Exploded View Of Fluid Cooler System With Torque Specifications (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
