Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

Remove the power window main switch finisher (2).
Refer to "REMOVAL AND INSTALLATION ".
Power window main switch (1) is removed from power window main switch finisher (2) using flat-bladed screw driver (A) etc.

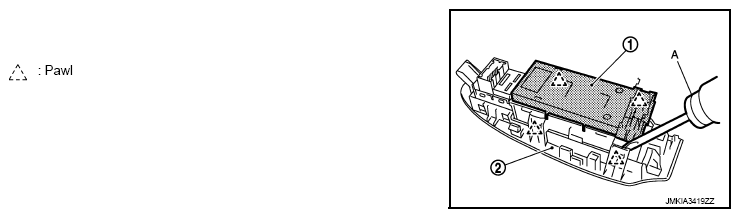

Fig 1: Identifying Power Window Main Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Never fold the pawl of power window main switch finisher.

NOTE: The same procedure is also performed for power window sub-switch.
