SHIFT PATTERN : Component Parts Location

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

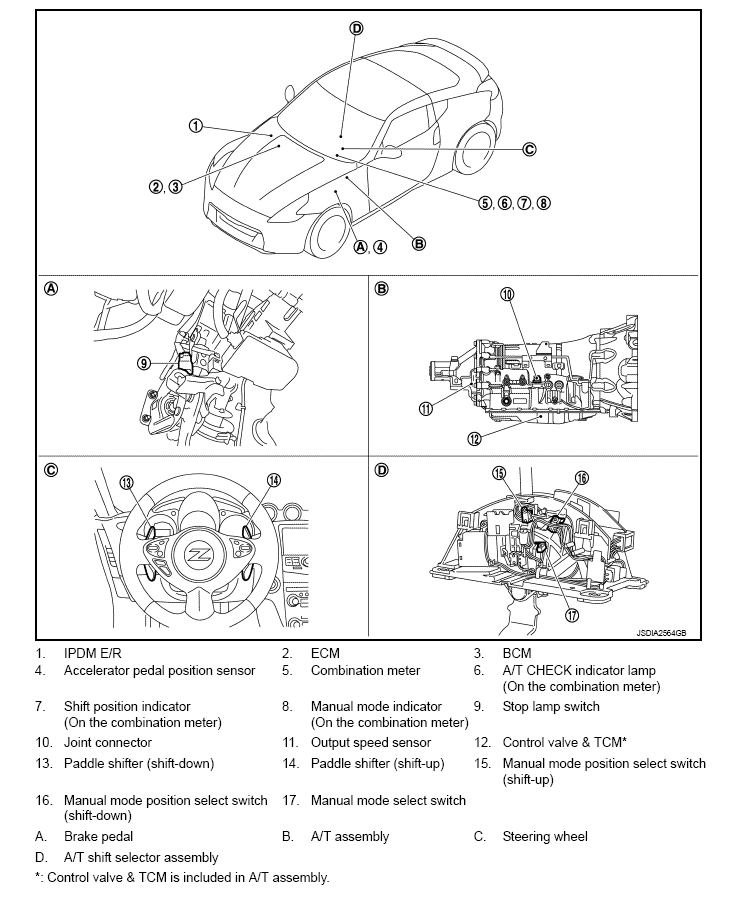

Fig 1: Identifying Shift Pattern Control Component Parts Location

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The following components are included in control valve & TCM.

TCM
Input speed sensor 1, 2
A/T fluid temperature sensor
Transmission range switch
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Input clutch solenoid valve
Front brake solenoid valve
Low brake solenoid valve
Anti-interlock solenoid valve
2346 brake solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve

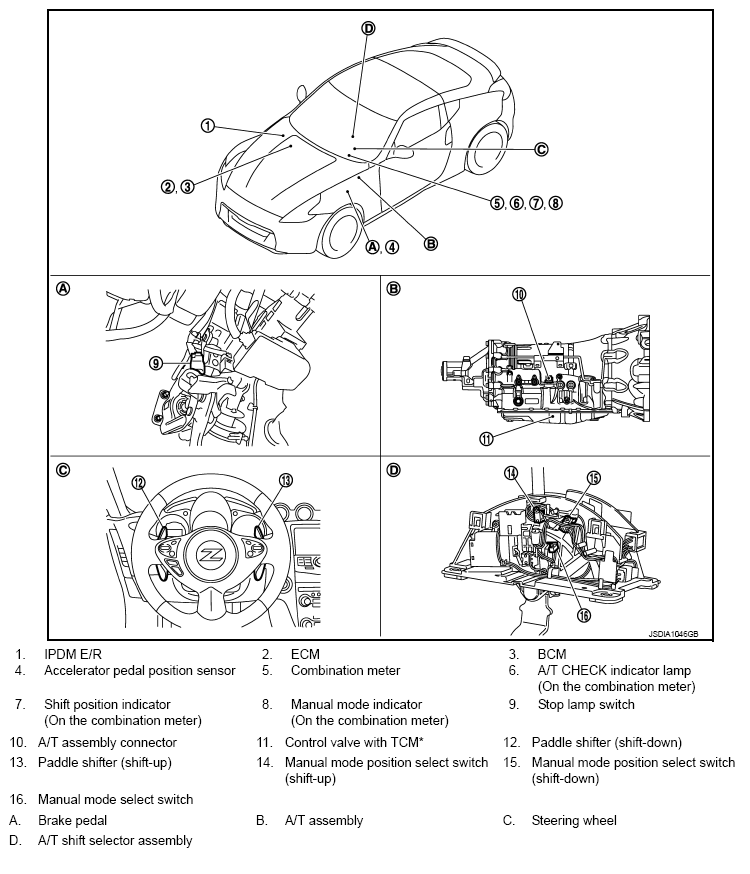

Fig 1: Identifying Shift Pattern Component Parts Location

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The following components are included in control valve with TCM.

TCM
Input speed sensor 1, 2
Output speed sensor
A/T fluid temperature sensor
Transmission range switch
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Input clutch solenoid valve
Front brake solenoid valve
Low brake solenoid valve
Anti-interlock solenoid valve
2346 brake solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve
*: Control valve with TCM is included in A/T assembly.
