A/C UNIT ASSEMBLY : Intake Sensor

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

Intake sensor measures evaporator fin temperature. This sensor uses thermistor that decreases electrical resistance as temperature increases.

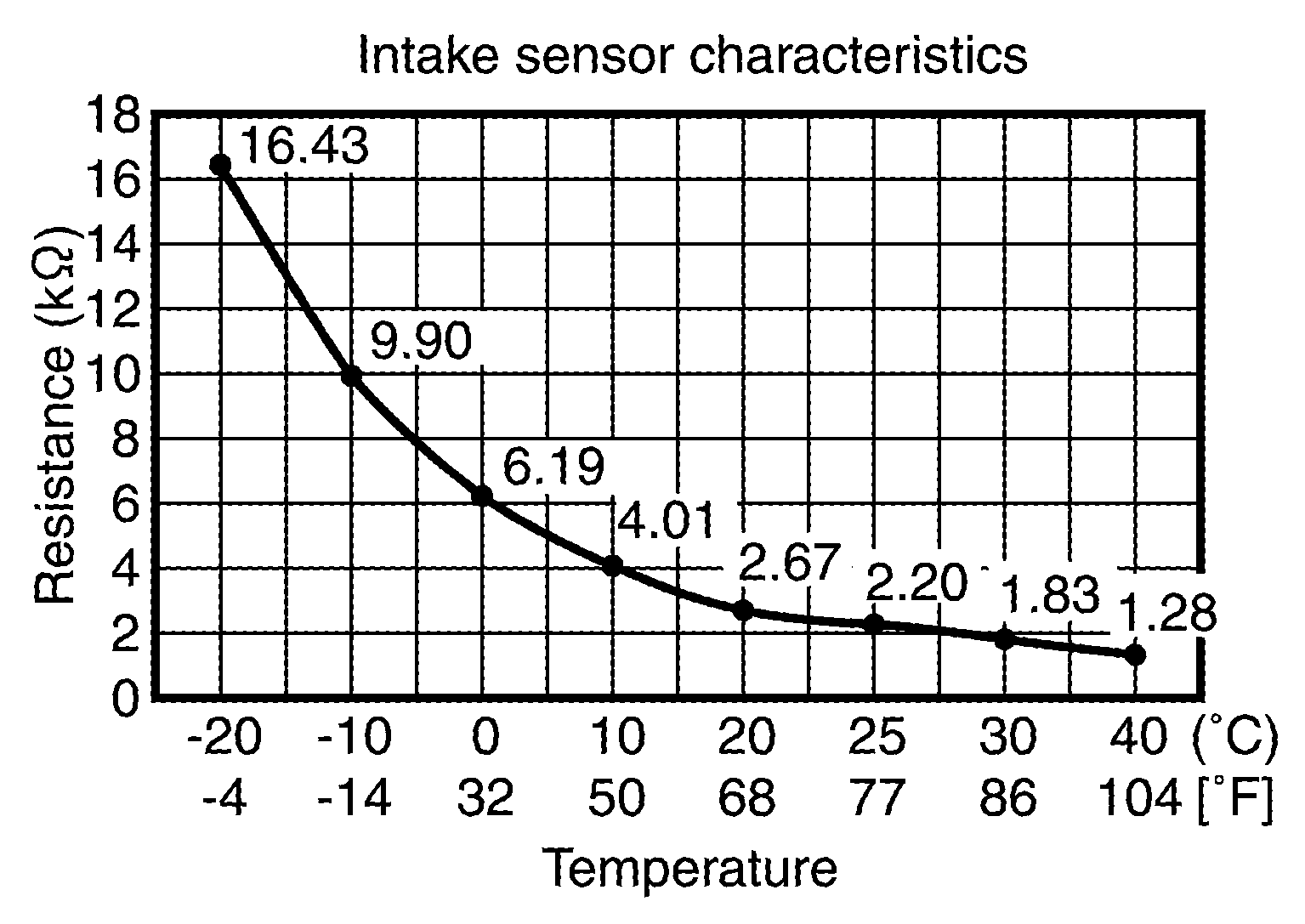

Fig 1: Intake Sensor Characteristics Graph
G07084645Courtesy of NISSAN MOTOR CO., U.S.A.
