M/T MODELS: Exploded View

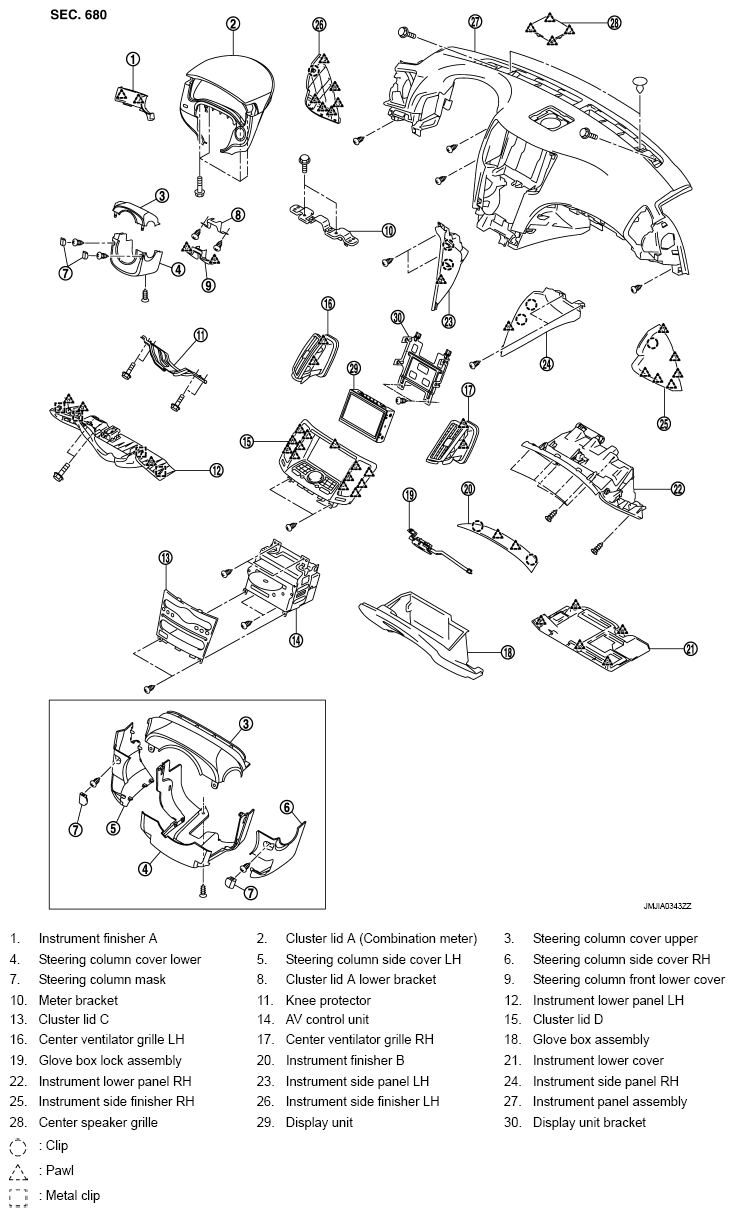

Fig 1: Exploded View Of Instrument Panel Assembly (M/T Models)

G08459111

Courtesy of NISSAN NORTH AMERICA, INC.
