Removal and Installation: Removal

  1. Remove the power window main switch finisher (2).

    Refer to "REMOVAL AND INSTALLATION ".

  2. Power window main switch (1) is removed from power window main switch finisher (2) using remover tool (A).

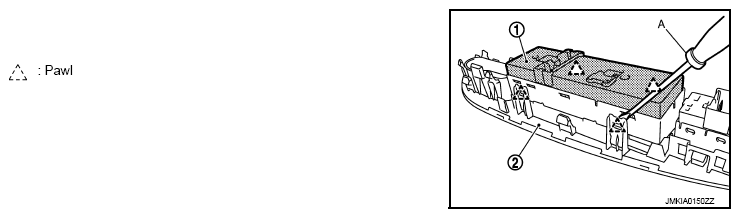

    Fig 1: Removing Power Window Main Switch Pawl
    G08453810Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Do not fold the pawl of power window main switch finisher.
NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).
