Driver Air Bag Module
>>
Exploded View
Exploded View

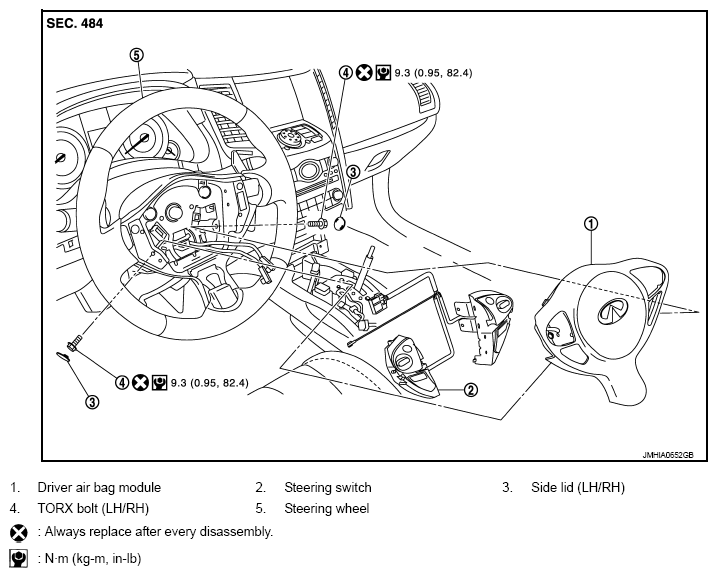

Fig 1: Exploded View Of Driver Air Bag Module With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
