Infiniti
>>
2012
>>
FX35 AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Mechanical
>>
Removal And Installation
>>
Ignition Coil, Spark Plug And Rocker Cover
>>
Exploded View
Exploded View

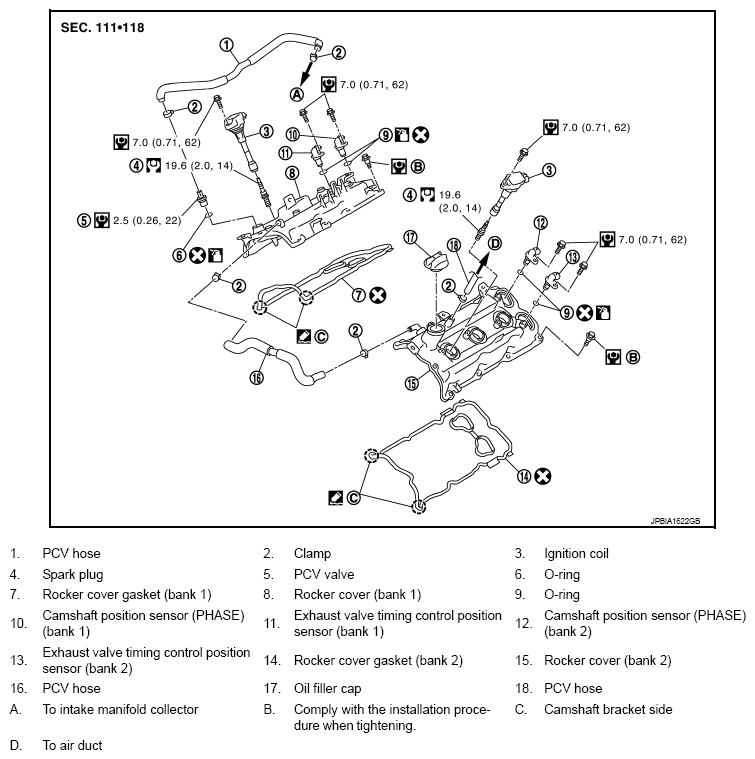

Fig 1: Exploded View Of Ignition Coil, Spark Plug And Rocker Cover With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
