Front Seat
>>
Exploded View
>>
Driver Seat
Driver Seat

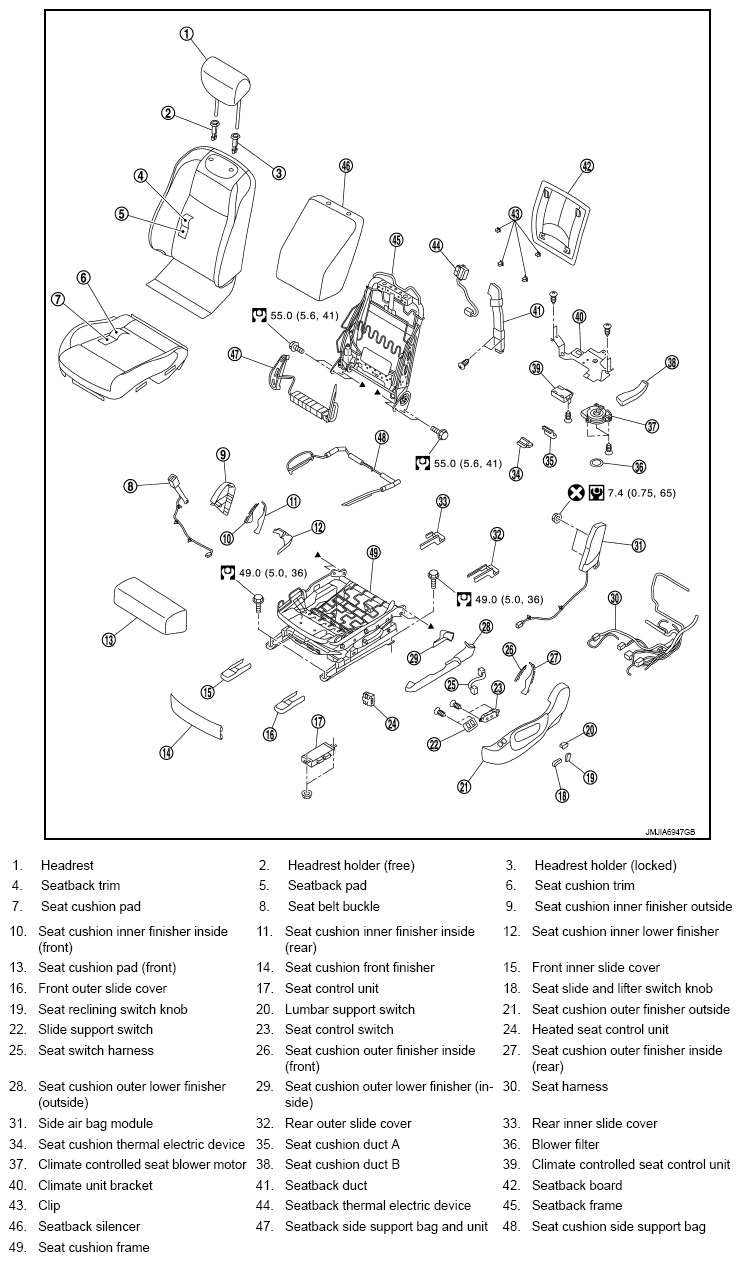

Fig 1: Exploded View Of Front Seat (Driver Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
