Removal and Installation: Removal

Drain ATF through drain plug.
Remove exhaust mounting bracket with power tool. Refer to "REMOVAL AND INSTALLATION ".

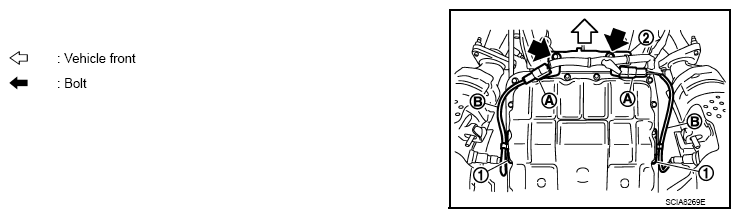

Disconnect heated oxygen sensor 2 connectors (A).

Fig 1: Locating Heated Oxygen Sensor 2 Bracket Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove heated oxygen sensor 2 harness (B) from clips (1).
Remove bracket (2) from A/T assembly. Refer to "2WD: REMOVAL AND INSTALLATION " (2WD) or "AWD: REMOVAL AND INSTALLATION " (AWD).
Remove clips (1).

Fig 2: Locating Oil Pan Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove oil pan (2) and oil pan gasket.
Remove magnets (1) from oil pan.

Fig 3: Identifying Oil Pan Magnets
Courtesy of NISSAN NORTH AMERICA, INC.

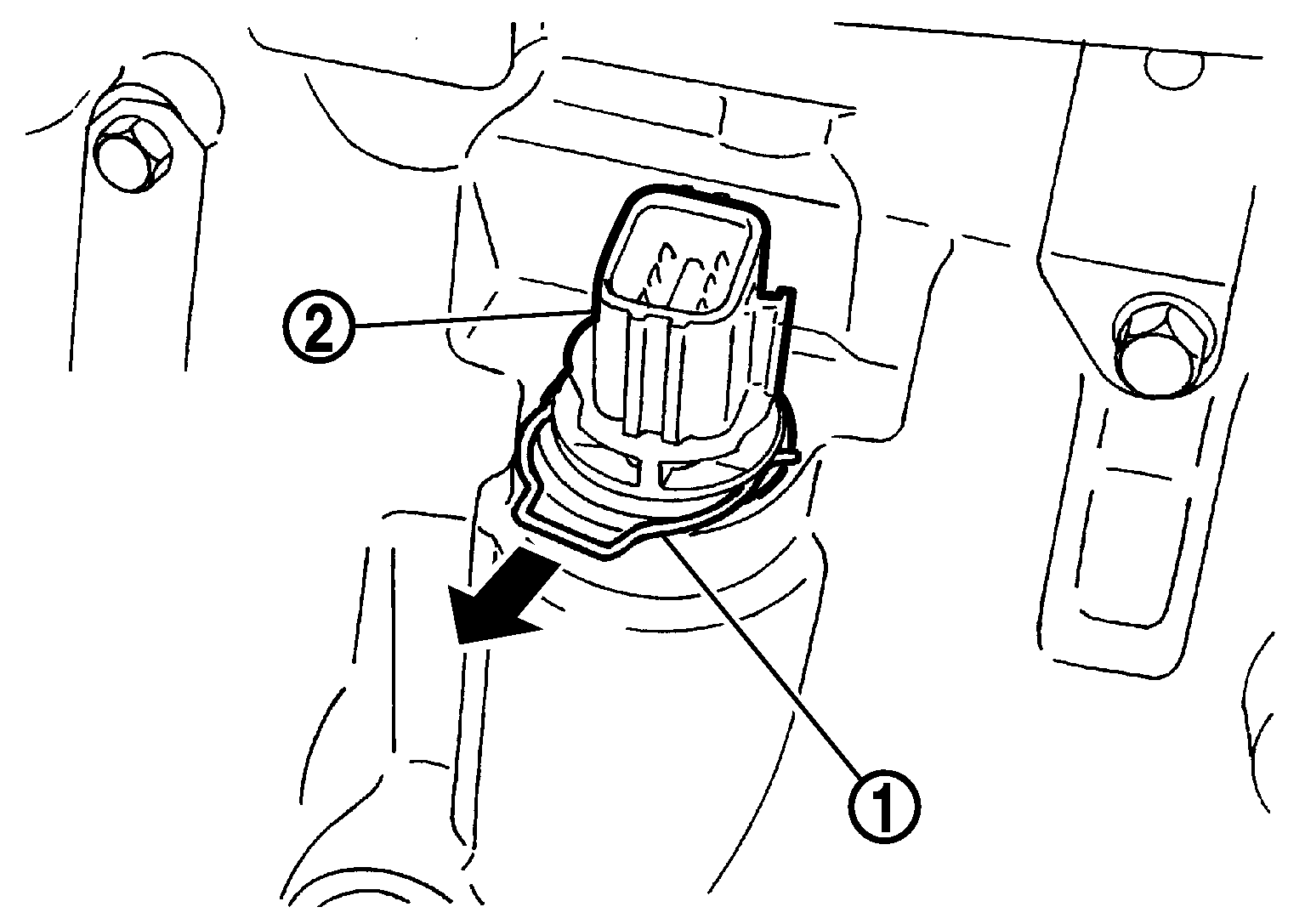

Remove snap ring (1) from joint connector (2).

Fig 4: Removing Snap Ring And Joint Connector
Courtesy of NISSAN NORTH AMERICA, INC.

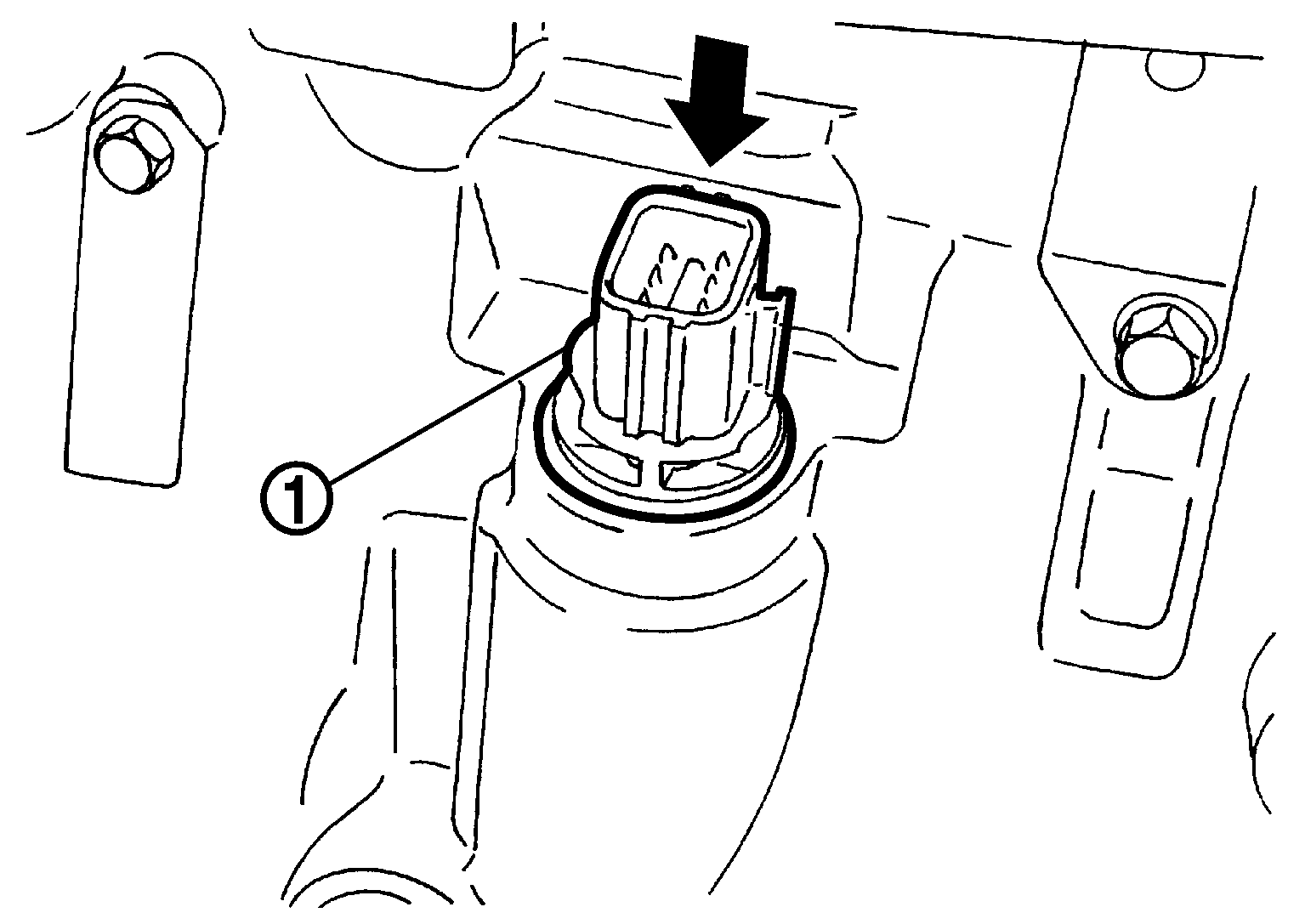

Push joint connector (1).

Fig 5: Push Joint Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect output speed sensor connector (A).
CAUTION: Be careful not to damage connector.
Disengage terminal clips.

Fig 6: Locating Output Speed Sensor Connector Clips
Courtesy of NISSAN NORTH AMERICA, INC.

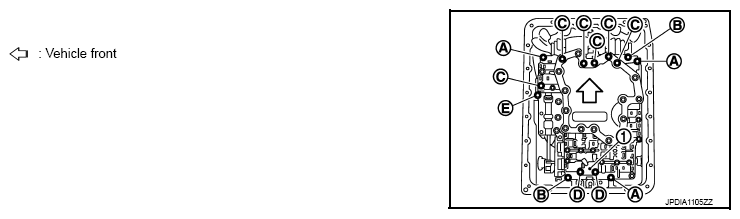

Remove bolts and clip (1) from the control valve and TCM.

Fig 7: Identifying Control Valve And TCM Bolts And Clip

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol

Length mm (in)

Number of bolts

43 (1.69)

40 (1.57)

54 (2.13)

50 (1.97)

E⁽¹⁾

50 (1.97)

⁽¹⁾	Reamer bolt

Remove the control valve and TCM from transmission case.
CAUTION: When removing, be careful with the manual valve (1) notch and manual plate (2) height. Remove it vertically.

Fig 8: Removing Control Valve And TCM From Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Remove joint connector (A) from the control valve and TCM using a flat-bladed screwdriver (B).
Disconnect TCM harness connector.

CAUTION: Be careful not to damage connector.

Fig 9: Removing Joint Connector From Control Valve And TCM

Courtesy of NISSAN NORTH AMERICA, INC.
