System Description
>>
SRS Air Bag System
>>
Component Parts Location
Component Parts Location

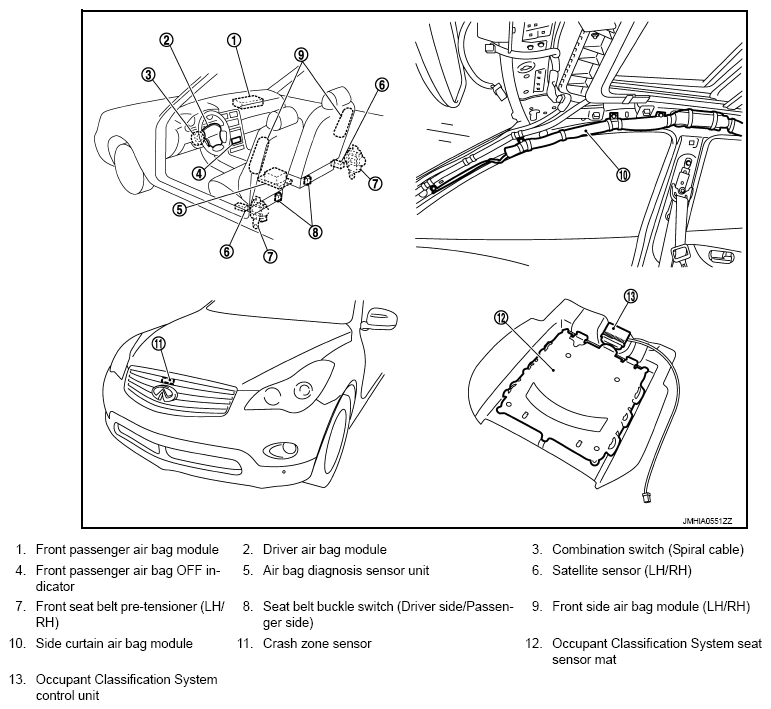

Fig 1: SRS Air Bag System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
