Exploded View

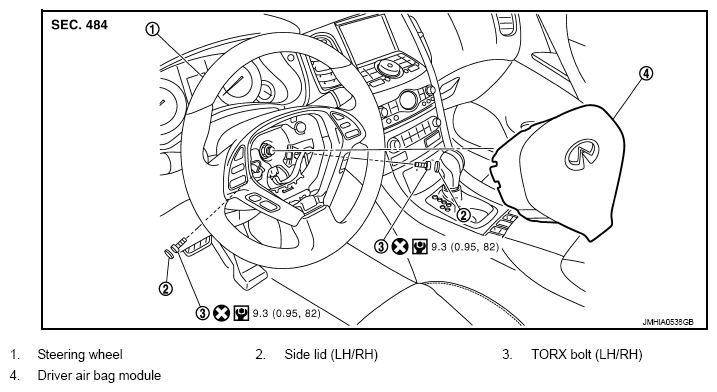

Fig 1: Disassembled View Of Driver Air Bag Module With Torque Specifications

G08194459

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
