Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front defroster grille (left) (1). Refer to EXPLODED VIEW  .
  2. Disconnect sunload sensor connector, and then remove sunload sensor (2).

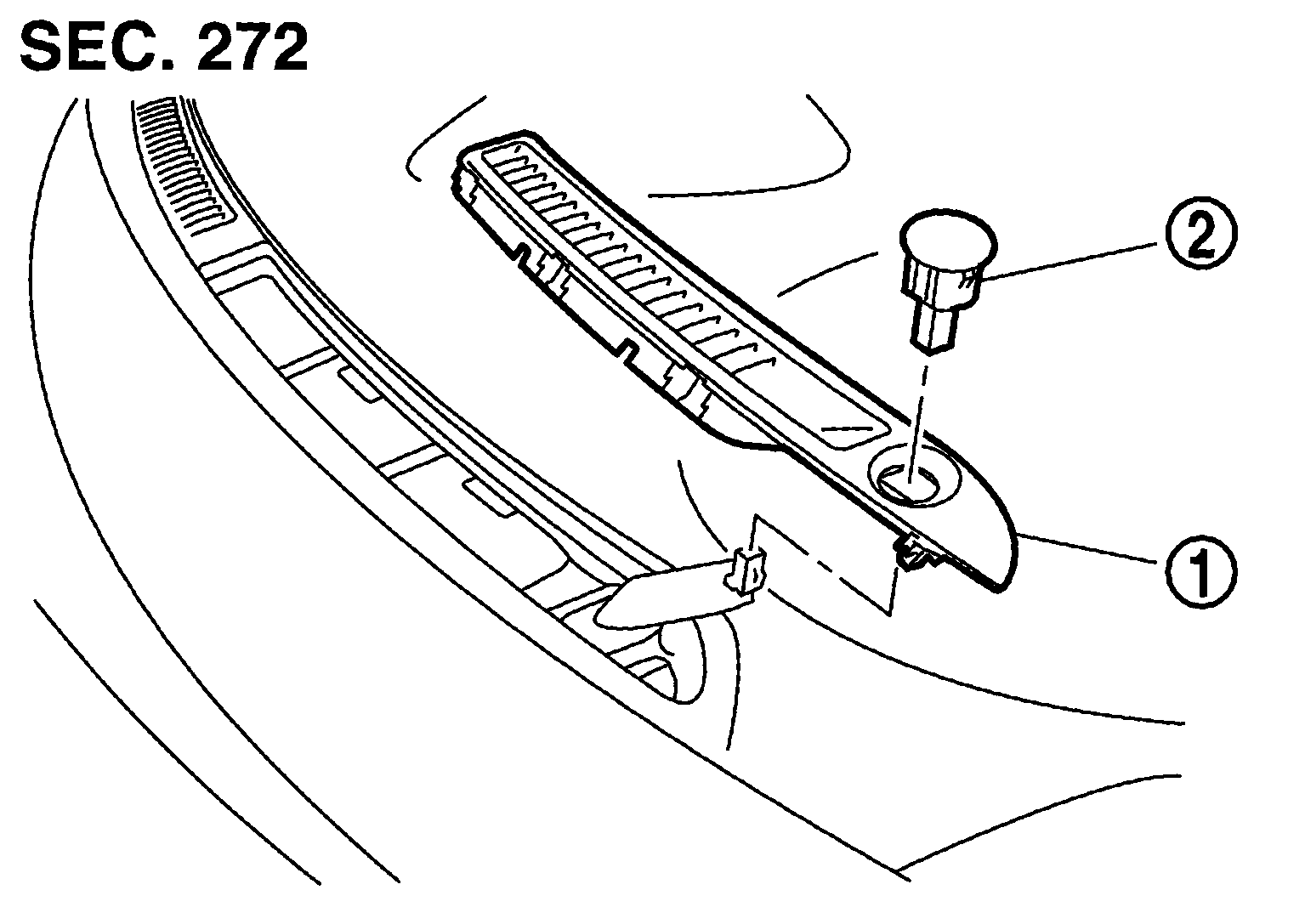

    Fig 1: Identifying Sunload Sensor & Front Defroster Grille (Left)
    G05727526Courtesy of NISSAN MOTOR CO., U.S.A.
