Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to EXPLODED VIEW .
  2. Remove mounting screw (A), and then remove in-vehicle sensor (1).

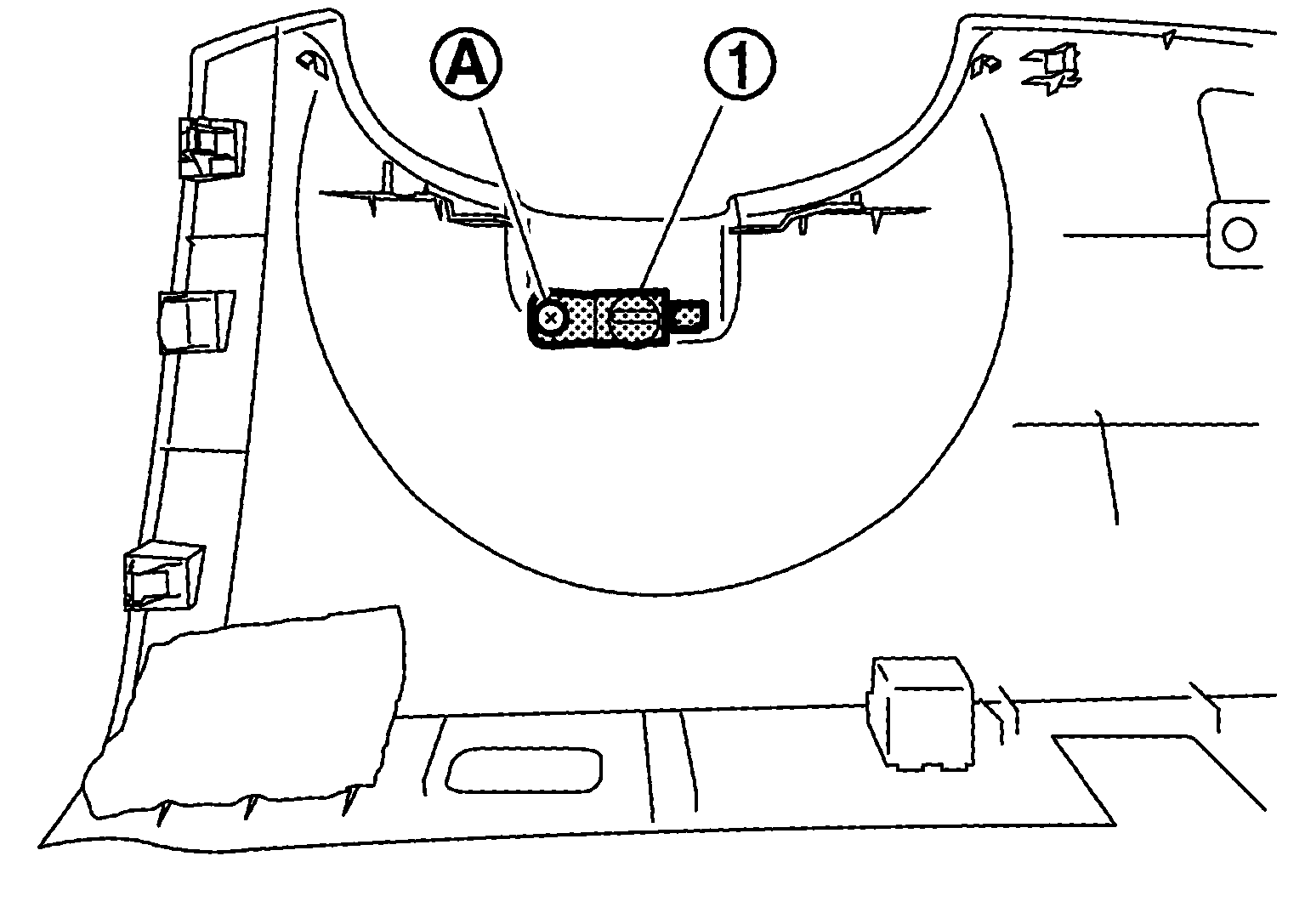

    Fig 1: Identifying Mounting Screw & In-Vehicle Sensor
    G05727524Courtesy of NISSAN MOTOR CO., U.S.A.
