Exploded View (AWD)

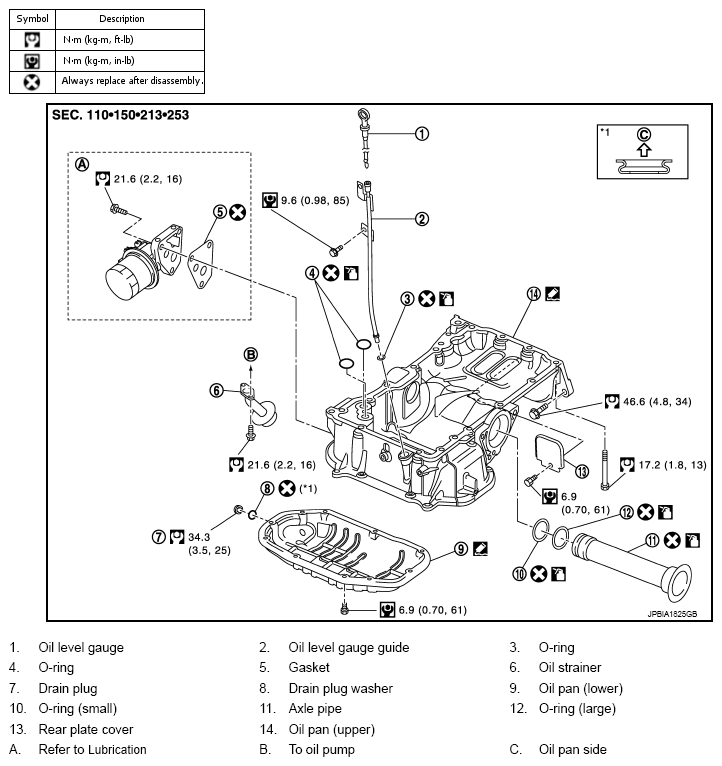

Fig 1: Exploded View Of Oil Pan (Lower) With Torque Specifications (AWD)

G07164432

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
